Monel Forced Circulation Propeller Elbow Axial Flow Pump For Brine Industry - China

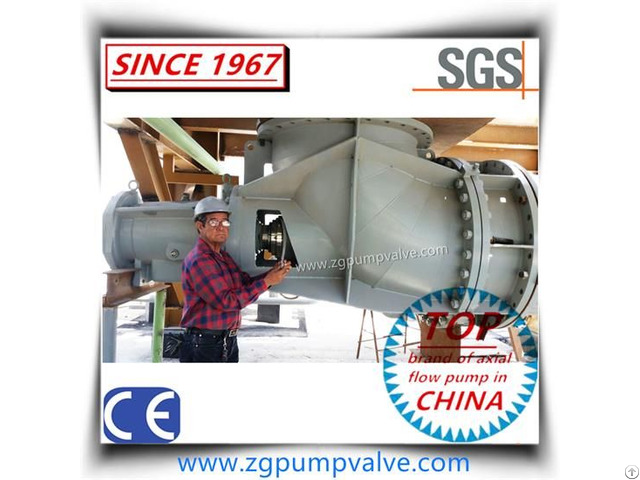

Monel Forced Circulation Axial Flow Pump For Brine Industry

Brief introduction:

Owns 8 patent technologies, the comprehensive performance of ZW axial flow pump ranks in top among all the local competitors in China.

It is a product of provincial achievement, and it gained the award of technology progress of China machinery industry.

There are plenty of real sales achievements for every single specification from diameter 250 mm to 1500 mm.

ZW axial flow pump is widely used as forced circulation pump in the applications of big flow rate with low total head, for example: MVR water treatment, vacuum salt, aluminum oxide, sodium sulfate, chlorine-alkali, sugar making, seawater desalination.

Parameters:

Flow rate: Q=250~55000(m³/h)

Total head: H=8~1.5 (m)

Speed: n=180~1450rpm

Fluid s.

g: γ ≤1.5 Fluid temperature: T=0~180ºC Fluid viscosity: ν ≤600(mm2/s)

Pump diameter: Ф250mm~1800mm Structure:

Elbow structure for pump body, piece-welded body and casted body for selection.

Pump impeller is cantilever type with spherical hub, impeller blades are adjustable.

Pump shaft adopts butt welding workmanship, the wetted parts or possible wetted parts are made from stainless steel or other corrosive materials.

Mechanical seal and packing seal can be interchangeable.

Adopting cartridge mechanical seal, reliable and easy for maintenance.

Enlarged cylinder type bearing housing with oil level glass and oil filler, which extends the bearing life and interval of lubricant changing.

Pump and be driven by motor through V -belts, gear box or directly through couplings.

For pipe hung pump, the universal joint transmission must be adopted if the motor ≥200kW.

Monel Forced Circulation Propeller Elbow/Axial Flow Pump For Brine Industry Applications: Salt-making force circulation pump

Sodium sulfate force circulation pump

Aluminum oxide force circulation pump

Sugar-making force circulation pump

Chlorine alkali force circulation pump

MVR water treatment force circulation pump
