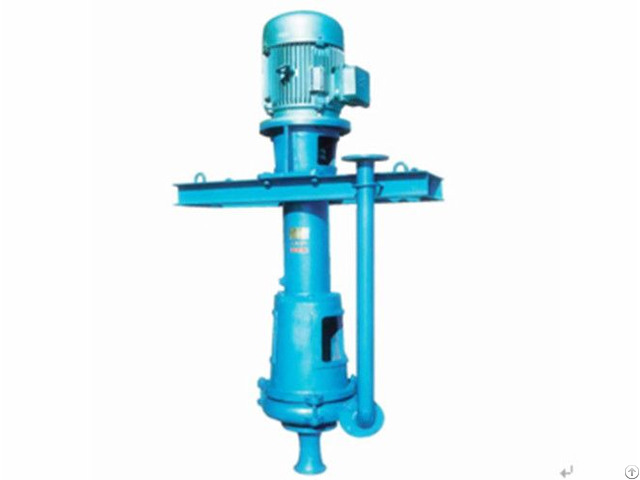

Pnl Vertical Submersible Slurry Pump - China

PNL vertical slurry pump is vertical single stage single suction mud pump.

PNL vertical slurry pump is suitable to convey liquid containing solid particles.

It is widely used in thermal power plant hydraulic ash removal, concentrator concentrate, tailings transportation field and conveying the maximum weight concentration is 50 or 60 percent.

PNL mud pump features Model PNL Vertical slurry pump is single stage, single suction, centrifugal mud pump, the flow parts of this type of pump are made of wear-resistant alloy material.

The pump impeller less 6inch pump is connected to the shaft by thread and the pump above 8 inches is connected by key.

The pump has the characteristics of simple structure, reliable, convenient maintenance and long service life model Flow Head (m) Speed.

n(r/min) power(kw) Efficiency(%) Impeller Dia.

Weight(kg)

m3/h L/S Shaft Motor

3PNL 54 15 26 1450 12 22 32 300 450

108 30 21 14.7 42

151 42 15.5 16.7 37

2PNL 30 8.33 22 1450 5.45 11 33 265 150

47 13.05 19 6.25 39

58 16.1 17 6.9 39

8PN 550 152.8 63 980 155 210 61 635 4000

10PN 1030 286.1 88 980 489 780 50.5 750 4600

25PNⅠ(Ⅱ) 1040 288.9 75 740 317.2 570 67 900 6500(8000)

25PNⅠ(Ⅱ) 1040 288.9 90 740 380 570 67 965 6500(8000)

25PNⅠ(Ⅱ) 830 230.6 575 590 194 310 67 965 6500(8000)

25PNⅠ(Ⅱ) 1000 333.3 68 740 276.5 475 67 850 6500(8000)

25PNⅠ(Ⅱ) 800 222.2 44 590 143 360 67 850 6500(8000
