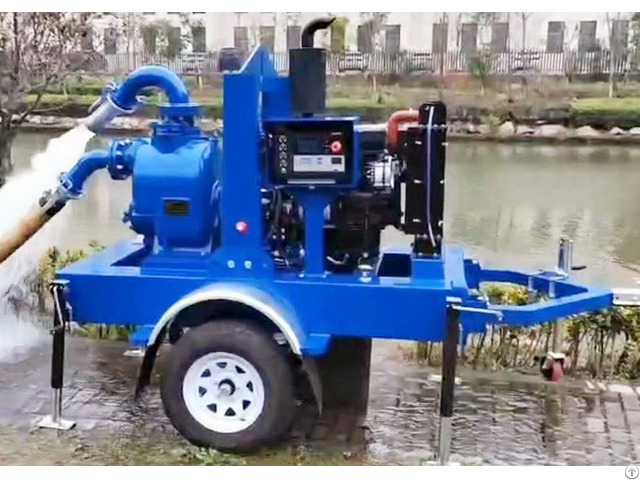

Self Priming Water Pump Driven By Diesel Engine - China

The self-priming sewage pump driven by a diesel engine mainly consists of two parts: the diesel engine and the self-priming sewage pump.

The diesel engine drives the water pump to operate through a coupling or belt transmission device.

The water pump sucks in water from the suction port through the rotation of the impeller and discharges it through the outlet.

Solid particles and fibrous substances in sewage are smoothly discharged through special impeller design and channel structure to avoid blockage.

Diesel engine: A diesel engine generates power by burning diesel, which is transmitted to a self-priming pump through a transmission device.

The diesel engine serves as a power source to drive the impeller inside the pump to rotate

Water pump: mainly including impeller, pump casing, suction port, and pressure outlet, responsible for pumping sewage out.

Transmission device: such as couplings or pulleys, used to connect diesel engines and water pumps to transmit power.

Base: Used to secure the diesel engine and water pump to ensure stable operation of the equipment.

Mobile trailer: two wheel/four-wheel trailer

Control system: including start switch, throttle adjustment device, protection device, etc., used to control the operation of diesel engine and monitor the status of equipment.

Inlet and exhaust system: Ensure the normal intake and exhaust of diesel engines.

Fuel supply system: provides fuel for diesel engines, usually including fuel tanks, fuel pumps, filters, etc.

characteristic:

Strong power: Diesel engines have high torque output and can provide powerful power at low speeds, making them suitable for use in complex operating conditions.

Strong adaptability: capable of treating wastewater containing solid particles and fibrous substances, not easily clogged, suitable for various water quality conditions.

Convenient to move: The whole machine has a compact structure, making it easy to transport and install, especially suitable for use in outdoor or temporary workplaces.

Easy maintenance: The structure of the diesel engine and water pump is relatively simple, easy to disassemble and repair, reducing maintenance costs.

Energy saving and environmental protection: Adopting combustion technology and low emission design to reduce environmental pollution and meet environmental protection requirements.

High reliability: Diesel engines have a long service life and high reliability, and can operate continuously for a long time.

application

Agricultural irrigation: For situations far from power supply or requiring temporary adjustment of irrigation areas, diesel self-priming pumps are an ideal choice, which can be quickly deployed and provide stable and reliable water source support

Industrial drainage: In mining and construction sites, diesel self-priming pumps have become an effective tool for dealing with high groundwater levels or sudden water accumulation problems due to their strong power output and fast response capability

Urban flood control: in the face of the urban waterlogging caused by the sudden rainstorm, the diesel self-priming pump can be quickly put into the rescue and relief work to help remove the water, restore traffic order and normal social operation

Emergency water supply: After natural disasters occur, diesel self-priming pumps can be used as temporary water supply equipment to provide domestic water security for the people in disaster areas
