Single Stage End Suction Pump

Horizontal Water Pump

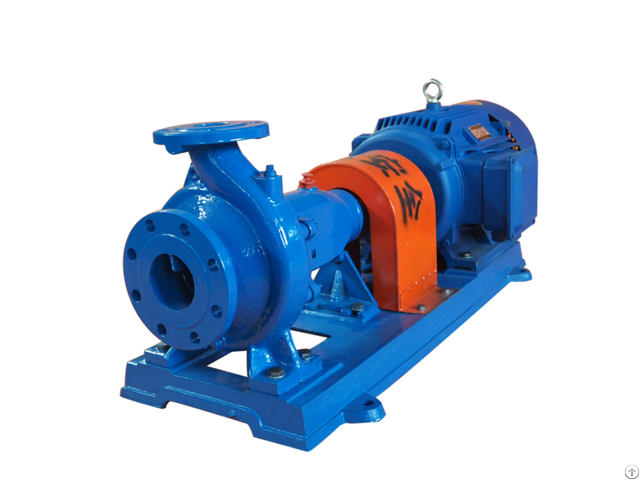

water pump Product Description Single Stage Clarified Water End Suction Centrifugal Irrigation Pump Description QI series pump is single-stage, single-suction centrifugal pump, designed as per the interational standard ISO2858 .

It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation .

It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.

IH type motor drive chemical pump designed for transferingchemical liquid, oil, petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, seawater desalt, paper making, food and etc .

industrial departments to transport corrosive medium without suspended grain or medium.

Industry Plumbing Applications

Generalwatersupply Circulation of HVAC building systems, water booster service, boilerfeed, general circulation service and more.

Agriculture/Food/Bever age Irrigation, water supply, food processing, beverage processing, fertilizers.

Manufacturing Pulp and paperfans, plastic&rubber, metal&steel, pharmaceutical, papermills, airwash, marineballastservice.

Fire/DisasterRelief Firepumps, fireprotection, floodcontrol, disasterrelief, federal/military.

Utilities: Water/Wastew ater Power Generation stations, dewatering, desalination, energy recovery turbines

Chemical/Mining Chemicalplants, refineries, petroleumdistribution, coalsites, ethylene glycol pumping.

More:

1 - Water supply system; Heat, air condition system

2 - Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber

3 - Booster, constant pressure water supply

4 - Firefighting, splitting system, farming irrigation/drainage

5 - Industry cooling, heater circulation system; Industry transferring, drain system

The QI Irrigation Water Pump is widely used for clean water, sea water, lake water when for irrigation.

There are different material for the pump parts for different liquid pumped:

No.

Country Cast iron Ductile Iron Stainless Steel 304 Stainless Steel 316

1 China HT250 QT500-7 0Cr18Ni9 0Cr17Ni12Mo2

2 US NO.

35 70-50-05 SS304 SS316

3 Japan FC250 FCD500 SUS304 SUS316

4 Germany GG25 GGG50 X5CrNi18.9 X5CrNiMo18.10

5 Italy G25 GS500-7 6 France FGL250 FGS500-7 Z6CN18.09 Z6CND17.12

7 ISO 250 500-7 11 20, 20a
