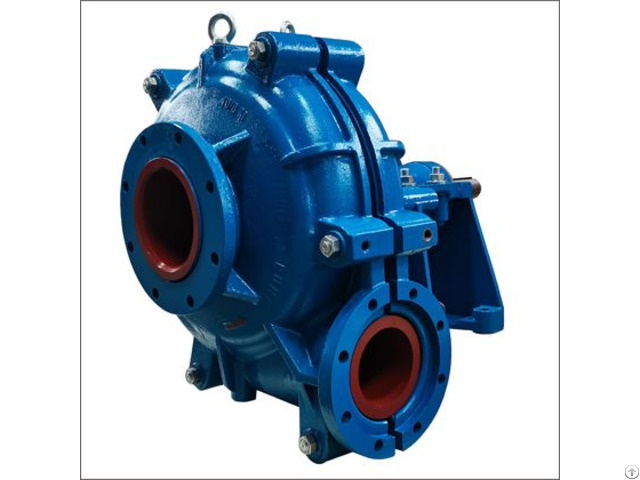

Slurry Pump 10 8e M 200em - China

Brand: CNSME

Model Number: SM/200E

Certificate: CE/ISO

Place of Origin: Hebei, China

Minimum Order Quantity: 1set

Delivery Time: 7-15 working days

Payment Terms: T/T, L/C

Supply Ability: 30 Sets per Month

Packaging Details: Standard export packaging

General Introduction:

▶Our horizontal slurry pumps are designed for heavy-duty applications such as mining, minerals processing, mill discharge, power plants, tailings, and other industrial applications, for maximum abrasion, erosion, and corrosion resistance.

▶The slurry pumps are in a wide range of sizes, available with both high chrome and rubber wearing parts.

Components like impeller and volute come in a range of hard metal types and elastomers to suit the specific application.

▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal, and mechanical seal.

▶Our metal-lined slurry pumps are designed for heavy-duty industrial applications, to handle the most arduous slurries.

▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp-edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.

Pump Structure:

01 - Labyrinth Lock Nut 02 - Shaft 03 - Bearing Housing 04 - Grease Retainer 05 - Bearings 06 - End Cover 07 - Labyrinth 08 - End Cover Screw Set

09 - Gland Packing 10 - Shaft Sleeve 11 - Lantern Restrictor 12 - Shaft Spacer 13 - Clamp Washer 14 - Adjusting Screw 15 - Clamp Bolt

16 - Frame Plate Stud 17 - Frame Plate 18 - Cover Plate Bolt 19 - Stuffing Box 20 - Seal 21 - Volute Seal 22 - Frame Plate Liner Insert 23 - Volute Liner

24 - Impeller 25 - Throatbush 26 - Volute Seal 27 - Cover Plate 28 - Cover Plate Nut 29 - Gland Assembly 30 - Gland Bolt

Applications:

Process Pumps; Bottom/Fly Ash; Lime Grinding

Mill Discharge; Fine Tailings; Flotation; Minerals Concentrate

Medium to Low-Pressure Tailings; Oil Sands; Minerals Sands

Company Contact:

• Posted By: Shijiazhuang Minerals Equipment Co. Ltd.

• Phone: +86 0311 66692398

• Address: 260# West Huaian Road, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.smepump.com/

• Business Description: Shijiazhuang Minerals Equipment Co., Ltd. is a professional Slurry Pump supplier in China.

  We are engaged in the manufacturing and production of heavy-duty and severe-duty slurry pumps and spare parts.

  Being manufactured at the highest standards, our pumps can guarantee longer service life, higher performance, easier operation, and maintenance.

  They are widely used in mining, mineral processing, tailings disposal, dredging, construction, metallurgy, power plants, sewage water treatment, as well as chemical and petroleum industry.

  With decades of development, we have built a complete system of slurry pump design, selection, application, and maintenance.

  We devote ourselves to offering the solutions of slurry pump applications for customers from all over the world.

  Our team consists of a global pool of highly dedicated people working closely together to ensure our customers' success.
