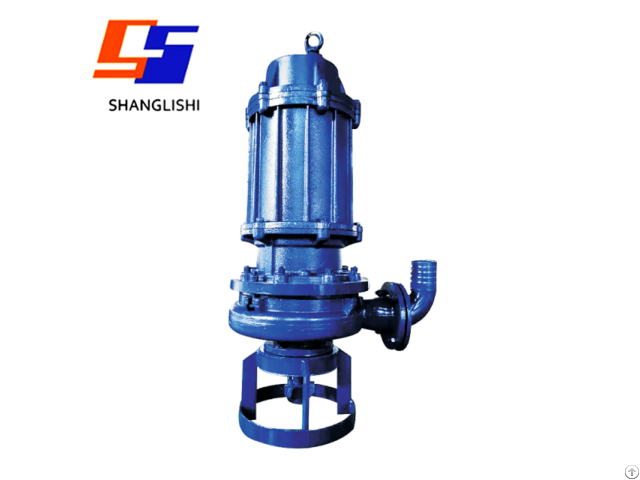

Submersible Slurry Pump Supplier - China

Product Specification

Inlet/Outlet diameter: 65-400mm

Capacity: 30-2000m³/h

Head: 6-260m

Speed: 720, 990, 1480 and 2960r/min

Power: 3-315kwKW

Materials: High chrome alloy.

Product Description

★ Model Type: SZQ/SZBQ

★ SZBQ(G)The submersible slurry pump is a new product designed and manufactured by our company on the basis of extensive absorption of advanced technology at home and abroad.

protection function, wear resistance, high efficiency.

The flow parts are made of Hi-chrome alloy, which is corrosion resistantand wear resistant, longer service life than conventional submersible slurry pumps.

★ Submersible slurry pumps mainly convey media containing solid particles (such as ore powder, ash, iron oxide scale, coal slime, mud sand and gravel, etc.

)below 70℃, suitable for mining, metallurgy, electric power, coal, river dredging, sand dredging and other industries.

When conveying high temperature medium, special instructions should be made in advance, and our company can customize it separately.

PH8 - Solid concentration: mortar 45%, pulp 60%.

★ For the convenience of maintenance, this type of pump has two installation forms: fixed type and mobile type.

The fixed type is to fix the quick-release rail components on the foundation.

If the quick- installed guide rail parts are used, when the pump needs to be repaired, the pump can be lifted along the guide rail with an iron chain.

After the repair, submersible slurry pumps can be lowered along the guide rail and automatically connected with the quick-installed elbow.

★ Submersible slurry pumps can be equipped with automatic control device.

The control device is divided into four types: ordinary water supply and drainage type;water supply and drainage type with overflow alarm system;continuous and automatic alternate drainage type;continuous and automatic alternate drainage type with overflow alarm system.

Users can choose according to specific conditions.

New submersible slurry pump with automatic protection device

1 - Overheating protection element to prevent damage due to high temperature

2 - Water leakage probe to monitor whether water is entering the pump cavity

3 - Float switch to monitor mechanical seal failure and water ingress in the motor cavity

4 - Bearing temperature protection, monitoring whether the motor bearing temperature is too high
