Szp Szpl Series Slurry Pump - China

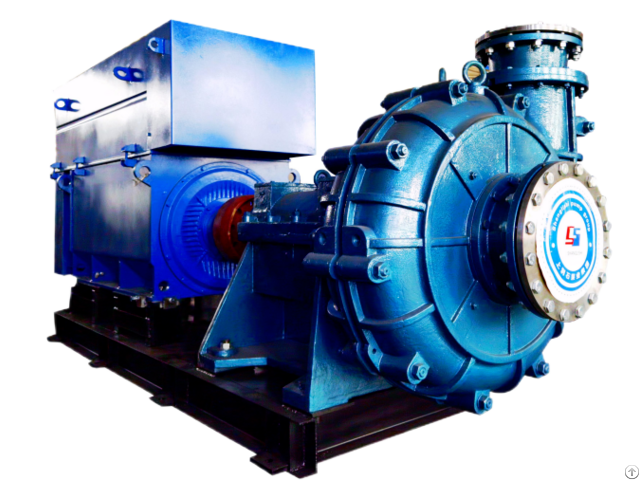

SZP/SZPL Series Slurry Pump

Product Description

★ Diameter: max 450mm

★ Material: High chrome alloy

★ SZP series slurry pump is a new type of high-efficiency, energy-saving and anti-abrasion pump.

★ This series of pumps comprehensively applies and innovates the advantages of similar products at home and abroad in terms of hydraulic design, structural design and wear-resistant materials.

It has the characteristics of high efficiency, energy saving, low vibration, low noise, reliable operation, long service life, and easy maintenance., the comprehensive performance of the pumps ranks at the domestic leading level, and the efficiency indicators of most pumps rank at the internationally advanced level.

★ SZP/SZPL type slurry pump is divided into horizontal and vertical two axial, it is widely used in electric power, metallurgy, coal, building materials and other industries to transport slurry containing solid particles.

Such as hydraulic ash removal in thermal power plants, slurry transportation in metallurgical dressing plants, coal slurry and heavy medium transportation in coal washing plants, etc.

★ The maximum slurry weight concentration Cw allowed to be transported is: ash (slag) slurry and coal slurry 45%; ore slurry and heavy medium 60%.

It can be used in series as required.

Struction Description

Structural characteristics of SZP type slurry pump

Bare shaft part:

The pump head of the SZP slurry pump includes the pump casing, impeller and shaft seal device.

The pump head and bracket are connected with bolts.

According to needs, the water outlet position of the pump can be rotated at eight different angles at 45° intervals for installation and use.

The pump casing of the SZP slurry pump has a double-layer casing structure.

The outer layer is a metal pump shell (front pump shell, rear pump shell), and its material is usually HT200 or QT500-7; the inner shell can be made of high-chromium alloy cast iron (including volute, front guard, and rear guard), or made of rubber (including front volute and rear volute).

The impeller is composed of a front cover, a rear cover, blades, and back blades.

The leaves are twisted leaves, usually 3-6 in number.

The back blades are distributed on the outside of the front cover and rear cover, usually 8 in number.

The impeller is made of high-chromium alloy cast iron, and the impeller and shaft are threaded.

The shaft seal device has three types: auxiliary impeller + packing combination seal, packing seal, and mechanical seal.

The auxiliary impeller + packing combination sealing type consists of a stuffing box, auxiliary impeller, water seal ring, packing, packing gland, and shaft sleeve.

The packing seal type consists of a stuffing box, a spacer sleeve, a water seal ring, a packing, a packing gland, and a shaft sleeve.

The mechanical seal type consists of stuffing box, spacer sleeve, mechanical seal, gland and shaft sleeve.
