Tobee 1 5 1b Ah Slurry Pump Stuffing Box B078g01 - China
price: 50.00 Dollar US$
Email: Sales7(at)tobeepump.

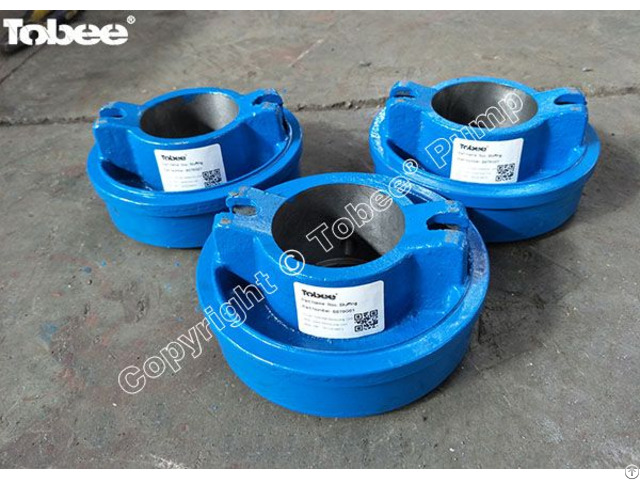

com B078G01 Slurry Pump Stuffing Box is used for 1.5/1B-AH Stuffing Box seal Slurry Pump.
Slurry pump stuffing box of a sailboat will have a stern tube that is slightly bigger than the prop shaft.
It will also have packing nut threads or a gland nut.
The packing is inside the gland nut and creates the seal.
The shaft is wrapped by the packing and put in the gland nut.
Through tightening it onto the stern tube, the packing is compressed, creating a seal against the shaft.
Creating a proper plunger alignment is critical for correct flow and a long wear life.
Stuffing box components are of D21 cast iron, A05 high chrome, stainless steel, brass or other application-specific materials.
Stuffing Box Design: When centrifugal pumps were developed there was a need to prevent the pumpage from pouring out thru the open clearance between the pump casing back and the rotating shaft, which turns the impeller.
This was accomplished by stuffing rope like material, called packing, into a cylindrical opening in the rear of the casing where the shaft passes through it.
Packing is usually 1/4”, 3/8”, or 1/2” square cross sectional, the size to match the annular section between the shaft OD and the stuffing box ID.
It comes in coils, and is cut to fit around the shaft OD.
It is a soft material and usually has a lubricant in it.
The opening, the stuffing box, has a shoulder at the bottom or “throat” (inboard end closest to impeller) and is fitted with a follower, called the gland, on the outboard end, which compresses the packing into the inner sides of the stuffing box against the shoulder in the bottom of the box, and against the rotating pump shaft.
This effectively limits the leakage out of the pump.
It will not completely prevent leakage.
A small amount of pumpage must leak out of the pump in order to cool and lubricate the packing
