Tobee® 12pcs 100rv Spr L Vertical Cantilever Slurry Sump Pumps - China

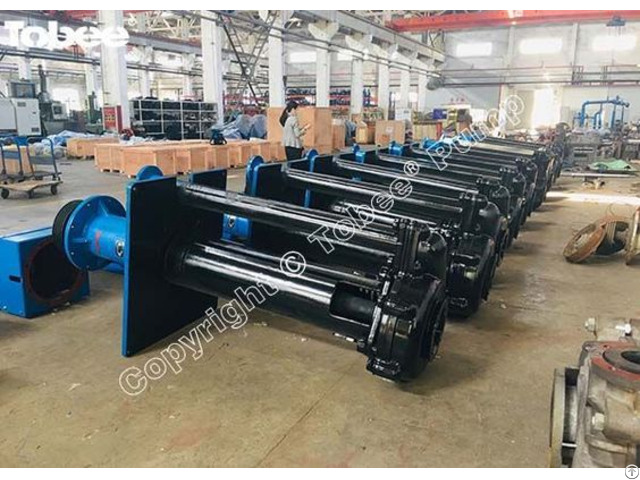

Tobee® 12PCS 100RV-SPR(L) vertical cantilever slurry sump pumps with 1800mm submerged length loading in 1*40HQ container.

Tobee® SP/SPR vertical spindle slurry pumps are mainly used in a variety of sump conditions, It can also be readily applied on floating dewatering or other floating pump platforms.

Design Features: • Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.

The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger.

The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float.

This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.

• Column Assembly - Completely fabricated from mild steel.

The TPR model is elastomer covered.

• Casing - Has a simple bolt-on attachment to the base of the column.

It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the TPR.

• Impeller - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids.

Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable.

The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet.

No further adjustment is necessary.

• Upper Strainer - Drop-in metal mesh, snap-on elastomer or polyurethane for TP and TPR pumps.

Strainers fit in column openings.

• Lower Strainer - Bolted metal or polyurethane for TP, moulded snap-on elastomer for TPR.

• Discharge Pipe - Metal for TP, elastomer covered for TPR.

All wetted metal parts are completely rust protected.

• Submerged Bearings - None

• Agitation - An external agitator spray connection arrangement can be fitted to the pump as an option.

Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.

• Materials - Pumps can be manufactured in abrasive and corrosive resistant materials.
