Tobee 4x3d Ah Slurry Pump Parts Gland Assembly D044 - China
price: 1200.00 Dollar US$

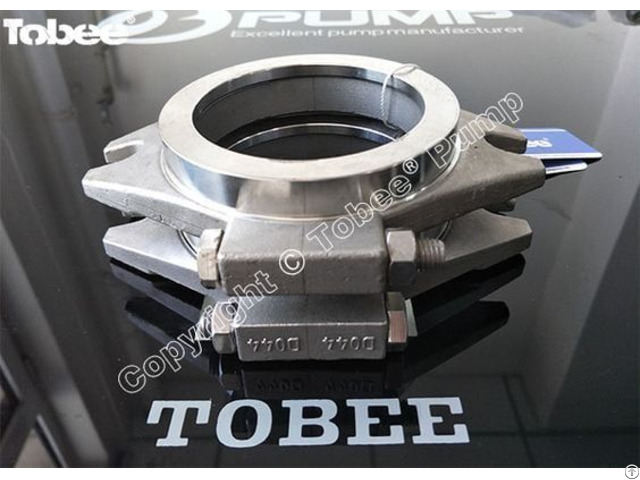

Tobee 4x3D-AH Slurry Pump Parts Gland Assembly D044.
Slurry pump Gland Assembly part code: B044, C044, D044, E044, F044, G044, H044, GH044, B044G01, C044G01, D044G01, E044G01, F044G01, G044G01, H044G01, GH044G01 The packing as a seal to prevent water from leaking out of the pump and air into the pump.
Gland Assembly is primarily used to compress the packing to ensure a tight seal between the packing and the bushing.
Gland Assembly has a split Gland Assembly that is typically used in slurry pumps.
The stuffing box seal is composed of packing box body, packing, gland, bolt and other basic parts.
The packing placed between the box body and the rotating shaft is radially extended under the axial force of the bolt force and the gland, so that the packing is tight.
Adhered to the periphery of the rotating shaft, the lubricating oil added from the oil cup will form a very thin oil film between the packing and the contact surface of the rotating shaft when the shaft rotates, which not only has lubricating effect, but also prevents the medium in the kettle from escaping and Infiltration of gas outside the kettle.
The sealing form of the Centrifugal Slurry Pump mainly includes packing seal, auxiliary impeller seal and mechanical seal.
The packing seal can be used together with the auxiliary impeller seal.
The packing sealing structure is simple, low in cost and easy to maintain, and is widely used in various types of Centrifugal Slurry Pumps.
Company Contact:
- Posted By: Hebei Tobee Pump Co.,Limited
- Phone: 13315360437
- Address: Shijiazhuang,Hebei province,China, Shijiazhaung , Hebei , China
- Email:
- Website: http://www.tobeepump.com
Published date: August 4, 2021
- Business Description: Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc.
Our factory is located in the High tech Development Zone, Shijiazhuang City, China.
We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Sewage pumps, Submersible slurry pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
