Tobee C011e62 Slurry Pump Clamp Washer - China

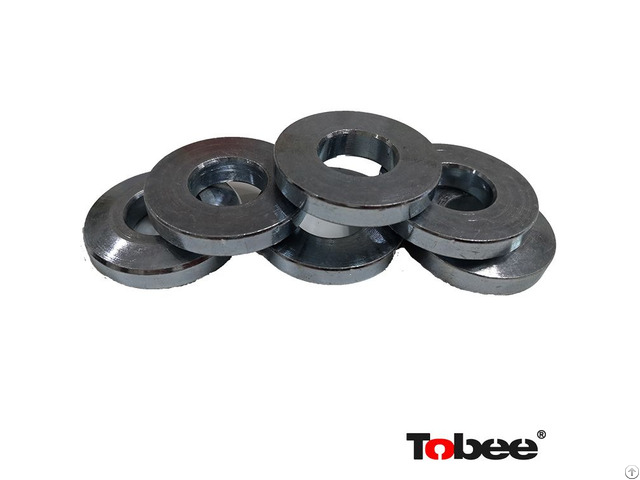

Tobee C011E62 Slurry pump clamp washer is used for 4/3C-AH and 3/2C-AH Slurry Pumps, the Slurry pump clamp washer function is to fit the slurry pump bearing assembly to base, and slurry pump clamp washers are normally made in carbon steel plating zinc.

4/3C-AH Slurry Pump Parts List: No.

Pump Parts Name Pump Model Pump Part Code Matl.

Code Unit Weight

(kg) 1 Adjust Screw 4/3C-AH C001 E62 2 Base 4/3C-AH C003M G01 44.0 3 Bearing Assembly 4/3C-AH CAM005M ZWZ Bearing 33.6 4 Bearing Housing 4/3C-AH C004M G01 15.0 5 Cover Plate 4/3C-AH D3013 D21 46.0 6 Cover Plate Bolt 4/3C-AH D015 E65 7 Cover Plate Liner 4/3C-AH D3017 R55 8.0 8 Discharge Joint 4/3C-AH D3132L S01 0.2 9 End Cover 4/3C-AH C024 G01 1.4 10 Expeller 4/3C-AH CAM028 A05 3.2 11 Expeller 4/3C-AH D028 A05 3.3 12 Expeller Ring 4/3C-AH CAM029 A05 6.6 13 Expeller Ring 4/3C-AH CAM029R R55 1.7 14 Frame Plate 4/3C-AH CAM3032 D21 41.0 15 Frame Plate Bolt 4/3C-AH D026 E62 16 Frame Plate Liner 4/3C-AH D3036 R55 6.5 17 Frame Plate Liner Insert 4/3C-AH D3041 A05 14.0 18 Frame Plate Stud 4/3C-AH D039 E62 19 Gland 4/3C-AH C044 G01 0.8 20 Gland 4/3C-AH C044 C23 0.8 21 Gland Bolt 4/3C-AH C045 C23 22 Grease Retainer 4/3C-AH C046 G01 0.4 23 Impeller 4/3C-AH D3147 A05 24.0 24 Impeller 4/3C-AH D3147 R55 9.0 25 Intake Joint 4/3C-AH D3060 S01 0.2 26 Labyrinth 4/3C-AH C062 G01 0.6 27 Labyrinth Locknut 4/3C-AH C061 E62 0.2 28 Lantern Restrictor 4/3C-AH C118 C23 0.3 29 Lantern Ring 4/3C-AH C063 C23 0.2 30 Lip Seal 4/3C-AH C090 S01 31 Neck Ring 4/3C-AH C067 C23 0.044 32 O ring 4/3C-AH C109 S10 33 O ring 4/3C-AH D109 S10 34 O ring 4/3C-AH D064 S10 35 O ring 4/3C-AH E064 S10 36 Packing 4/3C-AH C111 Q05 37 Packing 4/3C-AH C111 Q05A 38 Packing 4/3C-AH C111 Q21 39 Packing 4/3C-AH C111 X06 40 Piston Ring 4/3C-AH C108 G01 41 Seal 4/3C-AH D122 S01 0.2 42 Shaft 4/3C-AH CAM073M E05 9.6 43 Shaft Sleeve 4/3C-AH C075 C21 0.5 44 Shaft Sleeve 4/3C-AH C075 C23 45 Shaft Sleeve 4/3C-AH C075 J05 46 Shaft Sleeve 4/3C-AH C076 C21 47 Shaft Sleeve 4/3C-AH C076 C23 48 Shaft Sleeve 4/3C-AH C076 J05 49 Shaft Spacer(expeller seal) 4/3C-AH CAM117E C21 0.5 50 Shaft Spacer(gland packing) 4/3C-AH CAM117 C21 0.4 51 Shaft Spacer(gland packing) 4/3C-AH CAM117 C23 0.4 52 Shaft Spacer(gland packing) 4/3C-AH CAM117 J05 53 Shaft Spacer(gland packing) 4/3C-AH CAM117E C23 0.4 54 Shim Set 4/3C-AH C025 P10 55 Stuffing Box 4/3C-AH CAM078 A05 7.0 56 Volute Frame Seal 4/3C-AH D3125 S01 0.2 57 Volute Liner 4/3C-AH D3110 A05 63.0
