Tobee® C2032hsprd21 Frame Plate - China

price: 1200.00 Dollar US$

Tobee® C2032hsprd21 Frame Plate

Products Photos Catalog Tobee C2032hsprd21 Photos Catalog

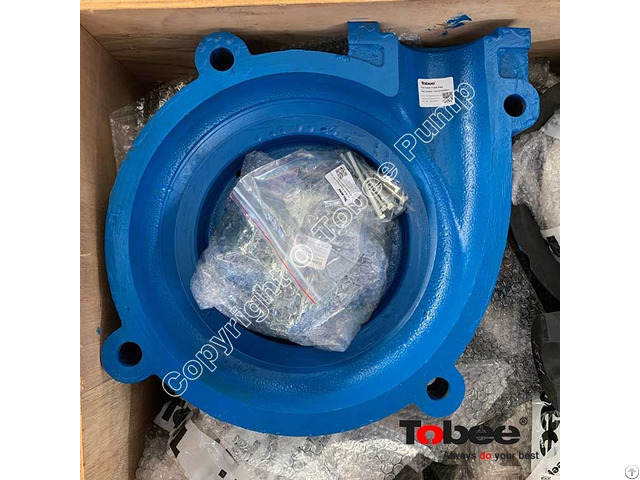

Tobee® C2032HSPRD21 Frame Plate is in the drive end of the 3/2C-AH Split Casing Slurry Pump.

Tobee® Slurry Pump Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

Generally, the material of slurry pump cover plate less than 6/4 size is made from Gary Iron, greater than 6/4 size is made from Ductile Iron for supporting higher pressure.

For all the series-connected slurry pumps, Ductile iron cover plate is requested.

Cover Plate is in suction end of split casing slurry pump.

It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body.

Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline.

So Cover plate need to have more higher request for strength.

Frame Plate is in drive end of split casing slurry pump.

It connects with Frame plate liner insert and beside the Bearing assembly.

Same as the cover plate, Frame plate also bear the pressure of pump cavity.

The working pressure of slurry pump is decided by the loading capability of frame plate, So the right materials of slurry pump frame plate is very important.
