Tobee Ep4110a05 Volute Liner Is Used For 6 4ee Ahp Slurry Pumps - China

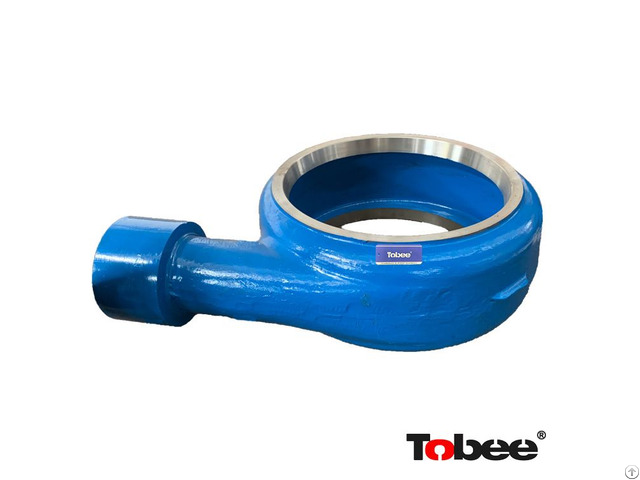

Tobee EP4110A05 Volute Liner is used for 6/4EE-AHP Slurry Pumps.

Slurry pump Volute Liner is an important wear part of slurry pumps.

It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them.

Slurry volute Liner is a curved funnel increasing in area to the discharge port.

It is often used with slurry pump impeller.

As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids.

The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.

AHP Slurry Pump Features: • Multi-stage high pressure operation to 1000 psi

• Heavy duty construction with through-bolt design provides ease of maintenance and less down time

• Ductile iron fully lined casing provides durability, strength and long service life

• Large diameter, slow turning, high efficiency impellers result in maximum wear life and lower operating costs

• Large, open internal passages reduce internal velocities maximizing wear life and lowering operating costs

• Thick elastomer or metal bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and intermixability to reduce over all maintenance costs and maximize wear life

• Minimal shaft/impeller overhang reduces shaft deflection and increases packing life

• Grease or oil lubricated bearing options offer ease of maintenance and reduced down time

• Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
