Tobee Expeller C028hs1a05a For The 4 3c Hi Seal Slurry Pump - China

price: 3000.00 Dollar US$

Tobee Expeller C028hs1a05a For The 4 3c Hi Seal Slurry Pump

Products Photos Catalog Tobee Expeller Photos Catalog

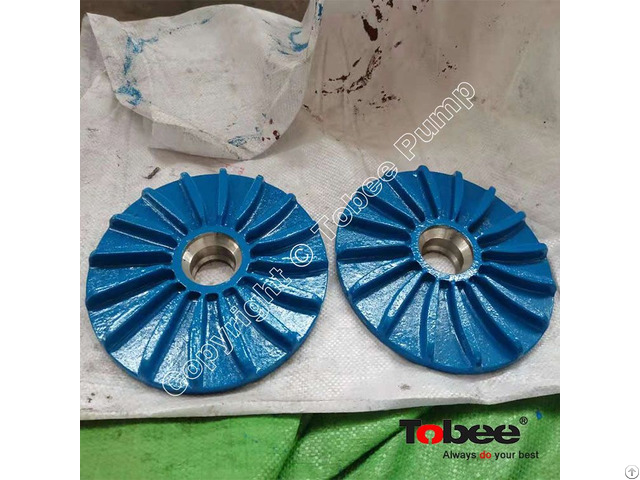

Tobee Expeller C028HS1A05A for the 4/3C Hi-seal slurry pump is also one of the important parts of the slurry pump, and be combined with the decompression cover to form the dynamic seal of the slurry pump.

It is one of the three types of shaft seals of the slurry pump.

The basic flow parts of the slurry pump include the impeller, cover plate liner, FPL insert and frame plate liner.

In addition to these basic flow parts, there are of course many important spare parts.

The expeller is also one of the important parts of the slurry pump.

It is combined with the decompression cover to form the dynamic seal of the slurry pump.

It is one of the three types of shaft seals of the slurry pump.

Below we will introduce the auxiliary impeller of the slurry pump: The standard material of the expeller of the slurry pump is generally gray iron or ductile iron, and it can also be made of A05 as the flow-through part material according to customer requirements.

In recent years, most customers prefer AO5 high-chromium wear-resistant alloy material when purchasing.

The hydrodynamic seal of the expeller refers to the installation of an open impeller in the opposite direction and coaxially near the back of the rear cover of the pump impeller.

When the slurry pump is working, the expeller rotates with the main shaft of the pump, and the liquid in the expeller will also rotate together.

The rotating liquid will generate an outward centrifugal force, which will cause the pressure of the medium at the shaft seal to drop to normal pressure or Negative pressure state When the slurry pump is stopped, the expeller will stop rotating, and its centrifugal force will also disappear The expeller can not only play a role in sealing, but also play a role in reducing the axial force.

If the expeller is installed, the direction of the pressure differential force acting on the expeller by the liquid is opposite to the pressure differential force acting on the impeller, so that part of the axial force can be offset and the bearing life will be prolonged.
