Tobee® Horizontal Split Case Pump Is A Single Stage Double Suction - China

price: 12000.00 Dollar US$

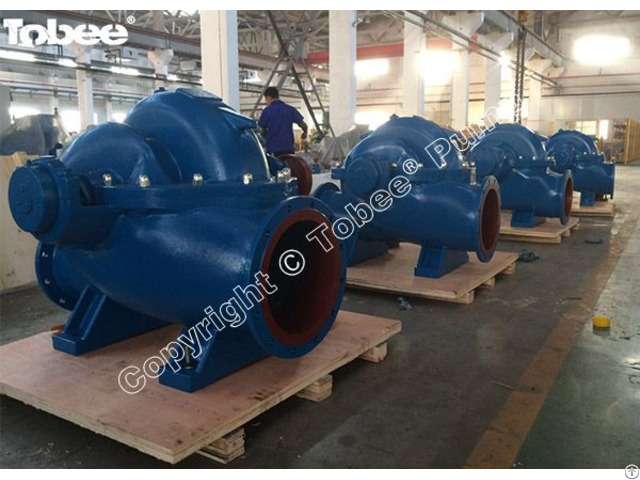

Tobee® Horizontal Split Case Pump Is A Single Stage Double Suction

Products Photos Catalog Tobee Horizontal Split Photos Catalog

Tobee® Horizontal Split Case Pump is a single-stage double-suction horizontal centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to water.

The maximum temperature of which must not be over 80℃, If the both ends of bearings add cooling water, The liquids temperature can upto 130℃, The pumps mainly used for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage, irrigation of farming land and carious hydraulic projects etc.

The inlet and outlet of TSH pumps are below the axial lead of the pump, vertical to the axial lead to form up a horizontal direction.

For check and prepair, It don't need to dismantle the inlet and outlet pipes and motors.

Viewed from the drving direction, The pump makes clockwise rotation.

( If requested, It can be changed to counterclockwise).

Pump casing and Pump cover from up the workroom of impeller, On inlet and outlet flanges, there are bolt holes to mount vacuum gauge and pressure gauge.


Company Contact:


  • Phone: 13315360437

  • Address: Shijiazhuang,Hebei province,China, Shijiazhaung , Hebei , China

  • Email: Email


Published date: May 11, 2022

  • Business Description: Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc.

    Our factory is located in the High tech Development Zone, Shijiazhuang City, China.

    We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Sewage pumps, Submersible slurry pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
