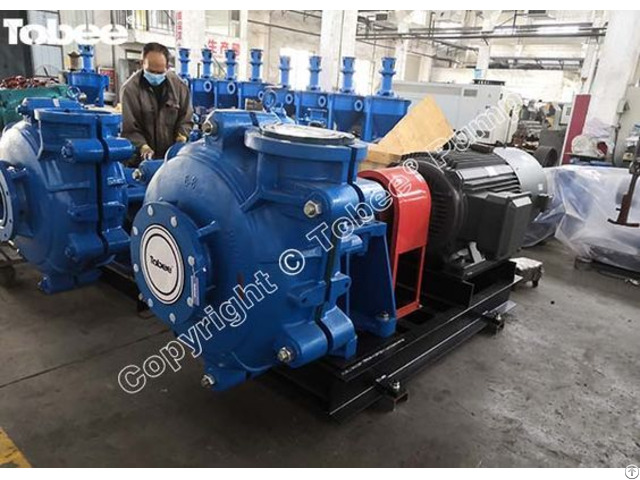

Tobee® Rubber Lined Slurry Copper Ming Pumps - China

Tobee® Rubber lined Slurry Copper Ming Pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

Detailed Features: • Horizontal, Cantilevered, Centrifugal, Single stage, Rubber lined slurry pump design.

• Casing - Casing halves of cast or ductile iron with external reinforcing ribs contain the wear liners and provide high operating pressure capabilities

• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.

Only four through bolts are required to hold the cartridge type housing in the frame.

• Pump frame - A rigid, one-piece casting cradles the “cartridge” shaft and bearing assembly.

A minimal number of through bolts hold the pump casing to the frame.

An easy means of external impeller adjustment is provided in a convenient position below the bearing housing.

• Impeller - Front and rear shrouds have pump-out vanes.

This design reduces recirculation and seal contamination, Elastomer impellers are made from rubber coated high tensile steel, Cast-in impeller threads require no impeller insert or nuts.

• Liners - Rubber elastomer liners are interchangeable with hard metal.

The elastomer liners are bolted, not bonded, to the outer casing.

Elastomer seal rings back all liner joints.

• Shaft seal - Packing seal, Centrifugal seal, Mechanical seal.

• Driving type - Flexible coupling, V-belt with pulleys, Gearbox, VFD, SCR control etc.

• The discharge branch can be oriented to any eight positions at the interval of 45 degrees;

• Easy to install and maintain in on-site application.
