Tobee™ Tp R Vertical Slurry Pump - China
price: 8000.00 Dollar US$

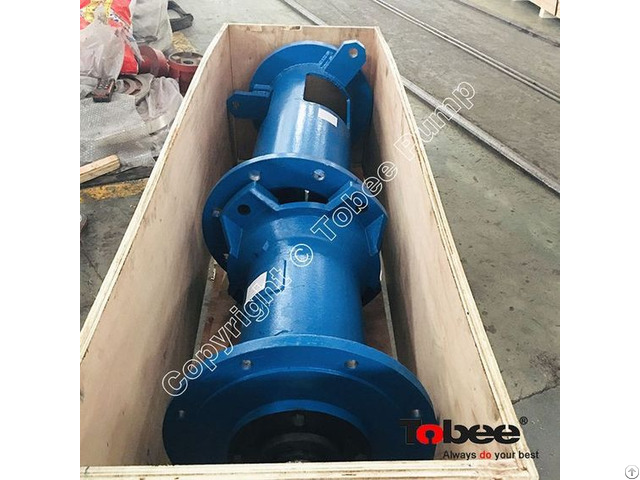

Tobee™ TP(R) Vertical Slurry Pump is a centrifugal slurry pump submerged in a sump to work.
It is designed for delivering abrasive, large particle, and high-density slurries.
The pump has no need for any shaft seal and sealing water.
Design Features: • Fully Cantilevered - Eliminates submerged bearings, packing, lip seals, and mechanical seals that other vertical slurry pumps typically require.
• Impellers - Unique double suction impellers; fluid flow enters the top as well as the bottom.
This design eliminates shaft seals and reduces thrust load on the bearings.
• Large Particle - Large particle impellers are also available and enable passing unusually large solids.
• Bearing Assembly - The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft.
• Casing - The metal pumps have a heavy walled abrasive resistant Cr27Mo chrome alloy casing.
Rubber pumps have a molded rubber casing adhered to sturdy metal structures.
• Column and Discharge Pipe - The metal pump columns and discharge pipes are steel, and the rubber columns and discharge pipes are rubber covered.
• Upper Strainers - Snap in elastomer strainers fit in column openings to prevent overly large particles and unwanted refuse from entering casing of the pump.
• Lower Strainers - Bolt-on cast strainers on the metal pump and molded snap-on elastomer strainers on the rubber pumps protect the pump from oversize particles.
Company Contact:
- Posted By: Hebei Tobee Pump Co.,Limited
- Phone: 13315360437
- Address: Shijiazhuang,Hebei province,China, Shijiazhaung , Hebei , China
- Email:
- Website: http://www.tobeepump.com
Published date: August 4, 2021
- Business Description: Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc.
Our factory is located in the High tech Development Zone, Shijiazhuang City, China.
We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Sewage pumps, Submersible slurry pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
