Wq Submersible Sewage Pump Large Flow - China

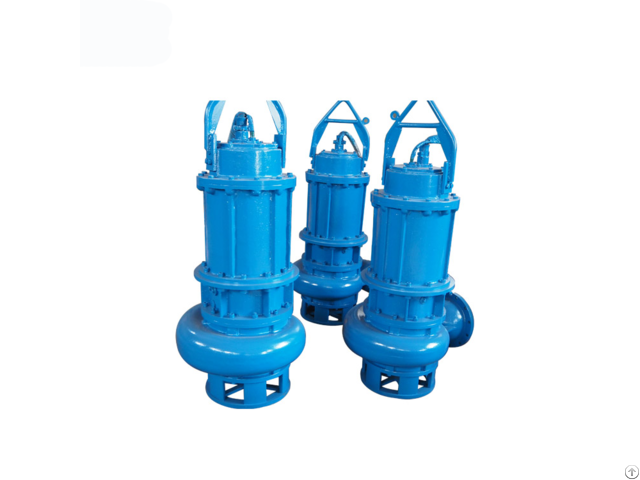

WQ Submersible Sewage Pump

Submersible Pump

Large Flow Submersible Pump

WQ submersible sewage pump is non-clogging sewage pump developed on the basis of the introduction of advanced technology from abroad.

It is now the most advanced domestic sewage systems.

Features: saving much energy, non-clogging, anti-winding, particles passing through easily, automatic installation, etc.

WQ series submersible sewage pump is powerful irrigation equipment.

Its motor and pump are integrated.

Equipped especially with vortex impeller or double-channel impeller and spiral type centrifugal pump body, it has excellent performance in draining sewage water.

Its motor adopts mechanical seals with anti-corrosive ceramic on two sides, which can prevent leakage very well.

Its protection level is IP58, designed insulation class grade E (75 K).

Its motor runs more safely and reliably.

It has long service life, convenient to install.

WQ Submersible Sewage Pump working conditions:

1 - The pump shall be immersed not deeper than 5m under water.

2 - Temperature of the fluids being pumped shall not be more than 40℃

3 - Fluids PH value 4 ~ 10, not including highly corrosive fluids.

4 - The volume ratio of solid particles in the fluids being pumped shall be under 20%

5 - The movement viscosity of the fluids being pumped be 7×10-7~23×10-6m²/s

6 - The density of the fluids being pumped shall not be more than 1200 kg/m ³

7 - WQ submersible pumps’ motor must be immersed under water when running.

WQ Submersible Sewage Pump features:

1 - Compact structure, easy to move and install

2 - Adopting cyclone type double flow impeller (high lift pump adopts centrifugal type), excellent performance in discharging pollution

3 - The motor adopts hard corrosion-resistant single and double ends ceramic seal, which can prevent leakage very well and make it run more safely and reliably.

4 - With cooling sleeve, the water filled pump can run above the fluids surface for a short time, drain the fluids on ground.
