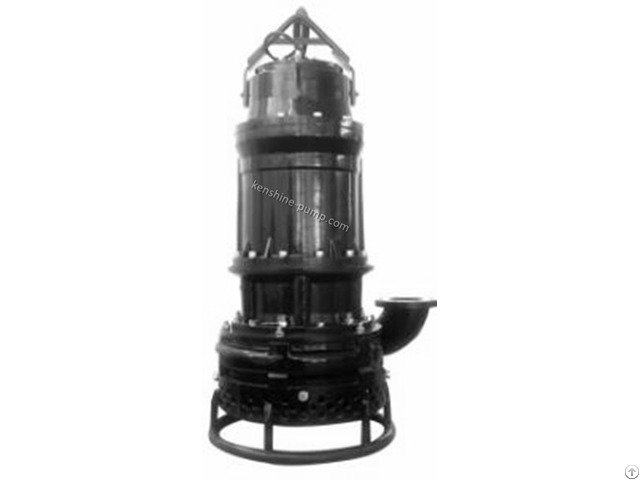

Zjq Submersible Slurry Wearing Resistant Pump - China

ZJQ Submersible slurry sewage pump is made of high chrome alloy and driven motor.

The pump is equipped with main impeller and stirring impeller so as to pass the liquids with large particle.

ZJQ submersible slurry pump main features: 1 - The whole pump unit is with dry motor up and pump down.

The motor adopts mechanical seal protection, which can effectively prevent high pressure water and impurities from entering the motor cavity.

2, in addition to the main impeller, there is also a stirring impeller which can be precipitated in the bottom of the sludge stirred into turbulence after extraction.

3, Main impeller, mixing impeller and other main flow parts are made of high wear resistant material(high chrome alloy), wear resistant, corrosion resistant, no blocking, strong sewage capacity.

The pump can effectively pass the larger solid particles.

4, not restricted by the suction range, high slag absorption efficiency, more thorough desilting.

5, no need to equip with auxiliary vacuum pump, lower investment.

6 - There is no need to equip with auxiliary stirring or spraying device, and the operation is easier.

7 - Motor is submersible, no need to build complex ground protection and fixed device, easier management.

8, mixing impeller direct contact with the deposition surface, through the depth of diving control concentration, so the concentration controls more freely.

9 - The equipment works directly under the water, without noise and vibration, and the site is cleaner.

ZJQ type submersible slurry pump is a coaxial body of the pump and the motor.

When working, the motor shaft drives the impeller of the pump to rotate and transfer energy to the slurry medium, so as to generate a certain velocity of flow, drive the solid material to flow and realize the conveying of slurry.

ZJQ type submerged slurry pump is mainly used to convey the slurry for dredging river, sand and sinking Lake treatment etc.

Compared with ordinary mud pump and slurry pump, ZJQ submersible slurry pump has the following characteristics: 1 - Free from suction range, high slag absorption efficiency and more thorough desilting.

2 - The flow parts are all made of wear-resistant alloy with long service life.

3 - There is no need to equip with auxiliary stirring or spraying device, which is easier to operate, less investment and faster effect.

4 - The motor does not need to construct complex ground protection and fixed device to dive into the water, so it is easier to manage.

5 - The mixing impeller directly contacts the deposition surface and controls the concentration through the depth of submersion, so the concentration control is more convenient.

6 - The equipment works directly under the water, without noise and vibration, and the site is cleaner.
