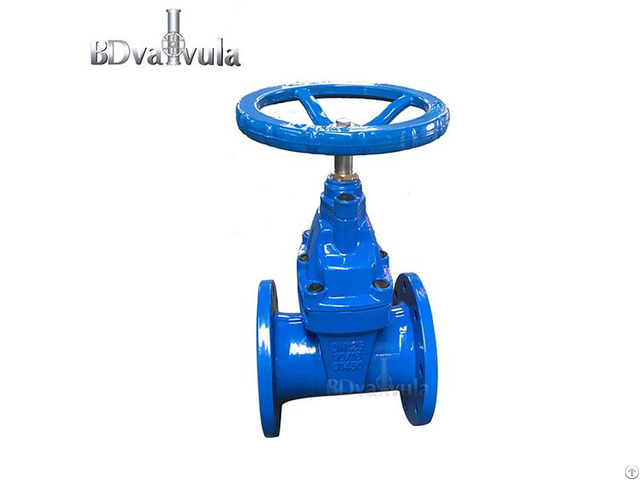

Din3352 F4 Epdm Cast Iron Flange Sluice Gate Valve - China
price: 20.10 Dollar US$
Valve body：GGG40
Bonnet：GGG40
Sealing ring：Brass
Disc：GGG40+EPDM
Stem nut：DN50-350 Brass, DN400-600 GGG40
Stem：SS410
Bonnet gasket：EPDM
O-ring：NBR/EPDM Rated operating pressure：PN：1.0/1.6MP a
Test pressure Intention 1.5/2.4MPa Hermetic 1.1/1.76MPa
Working temperature T ≤120°C
Suitable medium ：Water Soft seal gate valve, industrial valve, the opening and closing part of soft seal gate valve is the gate, the movement direction of the gate is perpendicular to the fluid direction, the gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.
The gate has two sealing surfaces.
The two sealing surfaces of the most commonly used model gate valve form a wedge.
The wedge angle varies with the valve parameters.
The nominal diameter is DN50~DN1200, and the operating temperature: ≤200℃
Company Contact:
- Posted By: Baoding valvula Imp&Exp Co.Ltd
- Phone: +86137032059051
- Address: heibeibaodingxushui , Baoding , Hebei , China
- Email:
- Website: https://bdvalvula.en.alibaba.com/
Published date: September 20, 2020
- Business Description: The company was founded in 1983, mainly engaged in gate valves/flanges/pipe fittings, which are exported to dozens of countries in Asia, Europe, America, and the Middle East.
The foreign trade company was founded in 2013 and has a multilingual sales team to provide you with high-quality services
