Hdpe Steel Mesh Reinforced Pipe - China

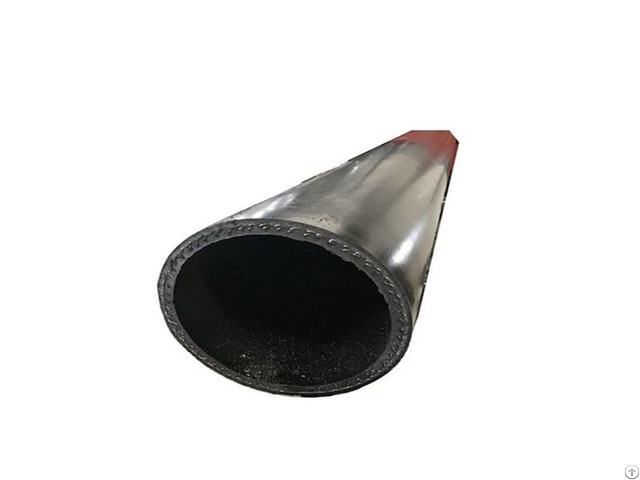

HDPE Steel Mesh Reinforced Pipe

This products series is a new style of low, medium, and high pressure resistant composite pipes, taking high strength adhesive coated steel wires as the reinforcement between inner and outside composite thermoplastics.

We implementing hygienic standards GB/T17219 of ‘Safety evaluation index of drinking water distribution and distribution equipment and protective materials’, the products standards conforms with CJ/T189-2007.

Looking for HDPE mining tailing pipe, HDPE Pipe for Drawing Out Methane, Mining Pipe and HDPE steel mesh reinforced pipe? We views innovation as the driving force of sustainable development and creates value for society, customers, shareholders, employees.

Detailed Information:

Specification

Outside Diameter(mm) Nominal Pressure (Mpa) 0.8 1.0 1.25 1.6 2.0 2.5 3.0 3.5 4.0 5.0 6.3 7.0

Nominal

Size Limit Deviation Wall Thickness (mm)

50 +1.2 — — — 4.5+1.2 5.0+1.2 5.5 +1.5 5.5 +1.5 5.5+1.5 6.0+1.5 8.5+1.5 9.0 +1.0 9.0 +1.0

63 +1.2 — — — 4.5+1.2 5.0+1.2 5.5 +1.5 5.5 +1.5 5.5 +1.5 6.5+1.5 8.5 +1.5 8.5+1.0 8.5+1.0

75 +1.2 — — — 5.0+1.2 5.0+1.2 5.5 +1.5 6.0 +1.5 6.0 +1.5 9.5+1.0 9.5+1.0 9.5+1.0 9.5+1.0

90 +1.4 — — — 5.5 +1.5 5.5 +1.5 5.5 +1.5 6.0 +1.5 6.0+1.5 10.0+1.0 10.5+1.0 10.5+1.0 10.5+1.0

110 +1.5 — 5.5+1.5 5.5 +1.5 7.0 +1.5 7.0 +1.5 7.5 +1.5 8.5 +1.5 8.5 +1.5 11.0+1.0 12.0+1.5 12.0+1.5 12.0+1.5

125 +1.5 — 5.5 +1.5 5.5 +1.5 7.5 +1.5 8.0 +1.5 8.5 +1.5 9.5 +1.0 9.5 +1.0 11.0+1.0 11.0+1.0 12.0+1.5 12.0+1.5

140 +1.7 — 5.5 +1.5 5.5 +1.5 8.0 +1.5 8.5 +1.5 9.0 +1.5 9.5 +1.5 9.5 +1.5 11.0+1.0 11.0+1.0 13.0+1.7 13.0+1.7

160 +2.0 — 6.0 +1.5 6.0 +1.5 9.0 +1.5 9.5 +1.5 10.0+2.0 10.5+2.0 10.5+2.0 11.0+1.5 12.0+1.5 14.0+1.4 14.0+1.4

200 +2.3 — 6.0 +1.5 6.0 +1.5 9.5 +1.5 10.5+2.0 11.0+2.0 12.0+2.0 12.5+2.2 13.0+1.2 13.0+1.2 15.0+2.2 15.0+2.2

225 +2.5 — 8.0 +1.5 8.0 +1.5 10.0+2.0 10.5+2.0 11.0+2.0 12.0+2.0 13.0+1.2 13.0+1.2 13.0+1.2 — —

250 +2.5 8.0 +1.5 10.5+2.0 10.5+2.0 12.0+2.2 12.0+2.2 12.5+2.2 14.0+1.4 14.0+1.4 14.0+1.4 15.0+2.2 — —

280 +2.6 9.5 +1.5 11.0+2.0 11.0+2.0 13.0+2.2 13.0+2.2 15.0+2.5 15.0+1.5 17.0+2.2 — — — —

315 +2.7 9.5 +1.5 11.5+2.0 11.5+2.0 13.0+2.5 13.0+2.5 15.0+2.5 15.0+1.5 18.0+1.6 — — — —

355 +2.8 10.0+1.8 12.0+1.2 12.0+1.2 14.0+2.5 14.0+2.5 17.0+2.1 17.0+2.1 19.0+2.5 — — — —

400 +3.0 10.5+2.0 12.5+2.2 12.5+2.2 15.0+2.8 16.0+2.8 17.0+2.8 17.0+2.8 — — — — —

450 +3.2 11.5+2.0 13.5+2.5 13.5+2.5 16.0+2.8 18.0+2.8 18.0+2.8 — — — — — —

500 +3.2 12.5+2.2 15.5+2.8 15.5+2.8 18.0+3.0 19.0+2.8 22.0+2.8 — — — — — —

560 +3.2 17.0+3.0 20.0+3.0 20.0+3.0 22.0+2.8 22.0+2.8 — — — — — — —

630 +3.2 20.0+3.0 23.0+3.0 23.0+3.0 26.0+3.0 26.0+3.0 — — — — — — —

710 +6.4 23.0+3.0 26.0+3.0 28.0+3.0 30.0+3.0 — — — — — — — —

800 +7.2 27.0+3.0 30.0+3.0 32.0+3.0 34.0+3.0 — — — — — — — —

900 +8.1 29.0+3.0 33.5+3.0 35.0+3.0 38.0+3.0 — — — — — — — —

1000 +9.0 34.0+3.0 37.0+3.0 40.0+3.0 — — — — — — — — — Tengyuan can supply municipal engineering pipe, dredging engineering pipe, HDPE Gas Pipe, Power Engineering Pipe, Mining Pipe and agriculture irrigation pipe, etc.

Integrity is the foundation of us, as well as the guarantee for enterprise's sustainable development.

Features

1 - Good creep resistance, high mechanical strength.

2 - Good temperature resistance.

3 - Rigid with impact resistance, good dimensional stability and moderately flexible performance avail strength and soft.

4 - Small thermal expansion coefficient.

5 - No rapid crack occurs.

6 - The compound of steel and plastic is even and stable.

7 - Anti-corrosive of inner and outer surface.

8 - Good tracing ability.

9 - Reasonable structure lead to flexible operation.

10 - Exclusive and various electrofusion joints make it easy for installation.

Application:

1 - The chemical industry

2 - The oil and gas field

3 - Metallurgical mines

4 - Municipal project

5 - Shipmuilding industry

6 - Ocean engineering

7 - Thermal engineering

8 - The highway project
