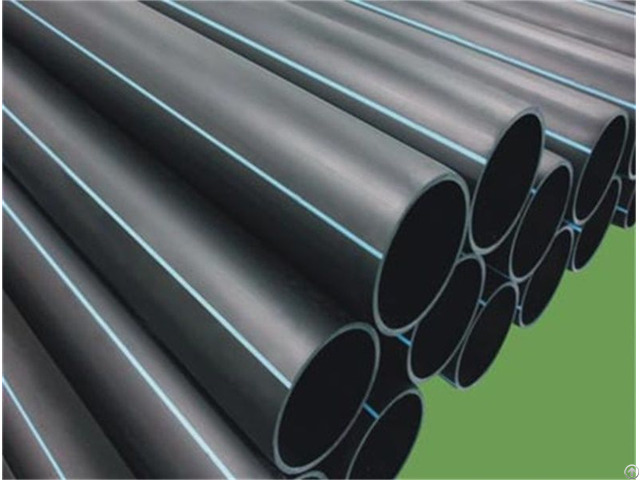

HDPE Water Supply Pipe

Detailed Information:

High quality raw material is the core of the product.

Our products are manufactured by excellent materials like BOREALIS, BASELL, TOTAL, DAELIM, SABIC, etc., which ensure the quality satisfying your demand.

HDPE Siphon Pipe, HDPE Drainage Pipe, HDPE Corrugated Pipe, HDPE Trenchless Pipe, HDPE Water Supply Pipe, HDPE GSHP pipe, HDPE Pipe Fittings Factory.

Specifications

Hdpe Water Supply Pipe (PE100)

Standard: ISO4427;EN12201;ASTM D3035;AS/NZS 4130;GB/T 13663.

Nominal Pressure 0.6MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa

SDR SDR26 SDR21 SDR17 SDR13.6 SDR11

DN

(mm) Thickness

(mm) Thickness

(mm) Thickness

(mm) Thickness

(mm) Thickness

(mm)

16 2.0

20 2.0 2.3

25 2.0 2.3

32 2.3 2.4 3.0

40 2.3 2.3 3.0 3.7

50 2.3 2.9 3.7 4.6

63 2.3 3.0 3.6 4.7 5.8

75 2.9 3.6 4.5 5.6 6.8

90 3.5 4.3 5.4 6.7 8.2

110 4.2 5.3 6.6 8.1 10.0

125 4.8 6.0 7.4 9.2 11.4

140 5.4 6.7 8.3 10.3 12.7

160 6.2 7.7 9.5 11.8 14.6

180 6.9 8.6 10.7 13.3 16.4

200 7.7 9.6 11.9 14.7 18.2

225 8.6 10.8 13.4 16.6 20.5

250 9.6 11.9 14.8 18.4 22.7

280 10.7 13.4 16.6 20.6 25.4

315 12.1 15.0 18.7 23.2 28.6

355 13.6 16.9 21.1 26.1 32.2

400 15.3 19.1 23.7 29.4 36.3

450 17.2 21.5 26.7 33.1 40.9

500 19.1 23.9 29.7 36.8 45.4

560 21.4 26.7 33.2 41.2 50.8

630 24.1 30.0 37.4 46.3 57.3

710 27.2 33.9 42.1 52.2 -

800 30.6 38.1 47.4 58.8 -

900 34.4 42.9 53.3 1000 38.2 47.7 59.3 1200 45.9 57.2 70.6 1400 53.9 66.7 82.4 Properties

Characteristics Requirements

Specific Gravity, g/cm3, (20℃) 0.941-0.965

Longitudinal Reversion, %, (110℃) <=3

Oxidation Induction Time, min, (200℃) >=20

Extension Rate at Break, % >=350

Melt Mass Flow Rate, g/10min (195℃, 5kg) Change of MFR by processing ± 20%

Hydrostatic Strength

1)20℃, Hoop Stress: PE100 12.4Mpa, PE80 9.0Mpa, 100h

2)80℃, Hoop Stress: PE100 5.4Mpa, PE80 4.5Mpa, 165h

3)80℃, Hoop Stress: PE100 5.0Mpa, PE80, 4.0Mpa, 1000h No Failure

No Failure

No Failure Tengyuan can supply municipal engineering pipe, dredging engineering pipe, HDPE Gas Pipe, Power Engineering Pipe, Mining Pipe and agriculture irrigation pipe, etc.

Integrity is the foundation of us, as well as the guarantee for enterprise's sustainable development.

Features:

1 - Non-toxic.

The HDPE material is non-toxic and tasteless.

It belongs to green building materials and never scaling through the strict health test, which can effectively improve the water quality.

2 - Low flow resistance.

The Smooth inner wall is easy for pipeline transportation .

Under the same condition, HDPE pipe’s delivery capacity can be increased by 30%, as its roughness is much less than that of steel pipe and glass reinforced pipe.

3 - No Leakage.

HDPE pipe is connected in the ways of butt fusion, socket fusion and electrofusion, which means the strength of joint point is higher than tube itself .

4 - Excellent Flexibility.

HDPE pipes could be coiled for the small diameter products.

Also, it could be slightly bended for the large diameter products, which will be much more convenient in the construction site.

5 - Good resistance ability for scratch.

HDPE pipe is 4 times the wear resistance of steel pipe, which means HDPE pipe has longer service life and better economical efficiency.

6 - Convenient for construction.

PE pipe could be installed in a variety of trenchless ways, so it is very convenient for construction and installation.

7 - Long life-span.

Designed 50 years’ service life under rated temperature and pressure.

8 - Lower operation and maintenance costs.

HDPE pipe is not only convenient to transport and install, but also greatly reduce the worker’s labor intensity and improve work efficiency.

Application:

1 - Urban area water-supply work system.

Large diameter HDPE pipe is healthy and non-toxic and more suitable for urban water supply main conduit and buried tube.

2 - Replace cement tube, iron pipe and steel tube.

Applicable for renovation project and does not need large area excavation, HDPE pipe can be widely used in old town of pipe network reconstruction.

3 - Industrial materials transmission pipe.

Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.

4 - Landscaping water supply network.

As landscaping project needs lots of water supply pipes, HDPE pipe is the best choice for its toughness and low costs.

5 - Sewage discharge pipes.

HDPE pipe have unique corrosion resistance, can be used as industrial wastewater and sewage discharged pipe.

6 - Ore and mud transfers.

HDPE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.

7 - Agricultural irrigation pipe.

HDPE pipe has the merits of great flow and good impact resistance, it is the ideal tool for agricultural irrigation.
