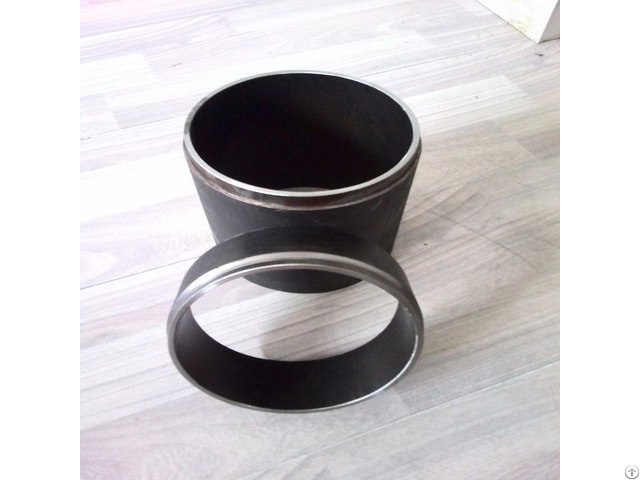

Inconel Alloy 825 Lined Pipe - China
price: contact company for price
Liner: Alloy 825 (Inconel 825)
Backing: API 5L, API 5CT, ASTM, ASME···Etc Incoloy 825 is rich in Cr, Mo and Cu, the 825 Incoloy alloy has good corrosion resistance to oxidizing and non oxidizing acids.
Especially high corrosion resistance for sulfuric acid.
Due to has a large content of Cr, Mo and Ni, has excellent performance for the corrosion resistance, corrosion resistance and stress corrosion cracking in chloride environment.
The carbon component content of Incoloy 825 alloy is controlled at a very low level, and it is not easy to be sensitized during welding.
It is not easy to be sensitized and low sensitivity to intergranular corrosion.
Specification:
Outer Diameter(mm): 20~1420
Wall thickness(mm): Outer backing pipe 2.5~50;Liner steel pipe 0.25~7
Composite Standard: API-5LD; DNV-OS-F101; DEP 31.40.20.32; CJ/T192;
Packing: In bulk or according to customers’ requirements Advantages of mechanically lined pipes:
• Cost savings of up to 40 % compared to solid pipes
• High corrosion resistance at the inside and high pressure resistance at the outside
Common alloy grades:
• N08825 (Inconel825)
Company Contact:
- Posted By: Bobpipe Engineering (Shanghai) Co.,Ltd
- Phone: +86-18110385044
- Address: Area C,High-Tech Building,No 900 Yishan Road,Xuhui District, Shanghai , Shanghai , China
- Email:
Published date: May 26, 2017
- Business Description: We are the leading manufacturer of Corrosion Resistant Alloy Lined/Clad Pipes (inner CRA layer normally includes stainless steel, Duplex, Nickel alloy, Titanium, Hastelloy etc), Fittings etc.
Meanwhile, supply pipes/tubes, steel sheet, steel coil, flanges, piping system, water supply solutions etc services.
Our products has been widely used in Oil & Gas transportation, Petrochemicals, Desalination & Salt Chemical, Medical, Nuclear & Power, Water supply and treatment, Food & Beverage etc.
