Malleable Iron Three Way Elbow - China

Malleable Iron Pipe Clamps

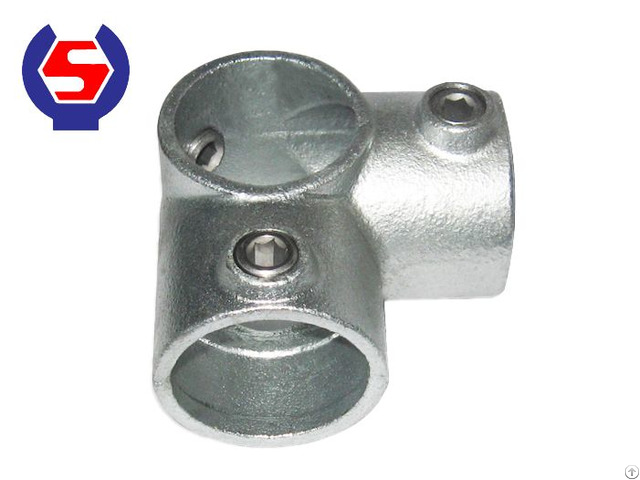

Type 116 Three ways through

90° corner joint, often used on middle rail on level sites and often paired with type 128 - The through tube (vertical) cannot be joined within the fitting.

Body Material Standard Malleable Iron, meet standard ASTM A197

Screw Stainless and Carbon Steel

Tensile Strength >=350Mpa

Elongation >=10%

Hardness HB<=150

Size Available AA to E (OD size 27-60 MM)

Surface Treatment Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated

Pipe Clamp Size Nominal Bore Outside Diameter

AA21 1/2’’ 21.3mm

A27 3/4’’ 26.9mm

B34 1’’ 33.7mm

C42 1-1/4’’ 42.4mm

D48 1-1/2’’ 48.3mm

E60 2’’ 60.3mm Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg.

125 followed by a size code eg.

D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.
