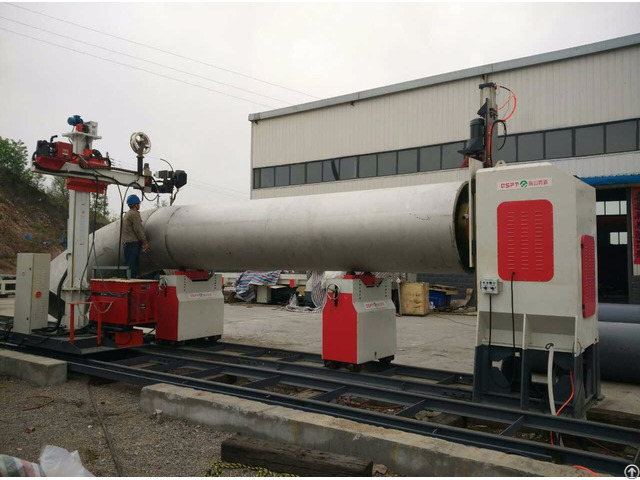

Pipe Prefabrication Cantilever Automatic Welding Machine - China

-Pipe Fabrication Automatic Welding Machine (GTAW)

Model: PPAWM-24Cb/32Cb

Performance features

On-line Performance: Excellent (Designed completely as per the on line equipment of the production line)

Application: backing welding or welding the pipes or the cover of the aluminum alloy pipe which need higher quality.

Welding Capacity: high (100-250inch/day)

Operability: Good (applicable and easy to operate even if you are a new user within a short period of time).

Surface finishing: Excellent (the welding gun will always be positioned in the optimum position)

Welding compliance rate: 98% min (without re-working for the skilled operator).

Driving Reliability: Good (driven by frictional force, however, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving).

Technical parameters

Pipe diameter applicable: DN50～600(φ60～610); DN200-800(φ219-813)

Pipe wall thickness applicable: 1～10mm

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, etc.

Welds applicable: various butt welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).

Driving System: driven by three line stainless steel roller and turbine worm Or driven by two line rubber roller and reducer

Clamping system: clamping arm move up & down electrically and clamps by screw manually/ clamping arm move up & down electrically and clamps by screw

Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline.

Counterweight System: no Counterweight

Speed～regulation Mode: VF stepless speed control system

Adjustment Mode: with electric cross regulator

 Oscillating system: a product of our patented technology, driven by step motor.

Control system: a product of our patented technology, PLC control.

Welding procedure: GTAW/TIG (can be do root pass, filling, & final welding)

Welding power: our OEM products which are famous in China (or as per customers’ demands)
