Reducing Sockets Malleable Iron Pipe Fittings - China

Malleable Iron Pipe Fittings

FIG NO.

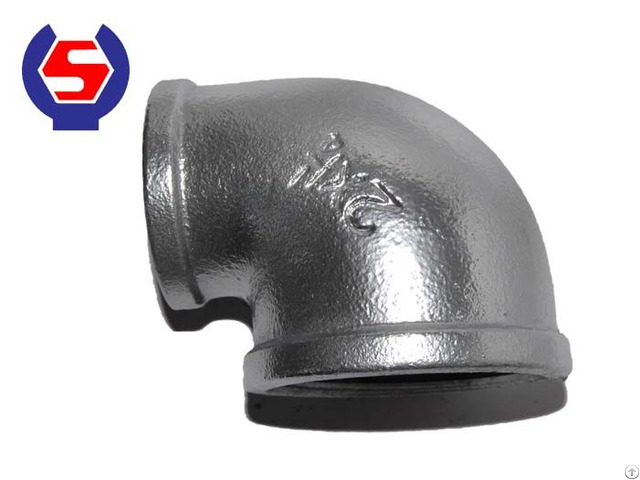

90R Elbows 90°Female Reducing

Material Black heart malleable iron

Surface Treatment a.

Black (as cast) b.

Galvanized (hot dip zinc coating) c.

Epoxy painting (250-300 Microns)

DIN Standard

(According to EN10242) Exported to many European countries Materials: DIN1692 Dimensions: DIN2950, EN10242, ISO49 Threads: DIN2999

American Standard Export to North and South American countries Materials: ANSI/ASME A197-79 Dimensions: ANSI/ASME B16.3-85 Threads: ANSI/ASME B1.20.1

British Standard Export to Middle East countries Dimensions: BS EN 10242, BS 143&1256 Threads: ISO 7/1

ABNT 6943 Standard Export to Brazil

Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)

Mechanical Properties Tensile Strength: ≥ 33kg/mm² Elongation Rate: ≥ 8% Hardness: ≤ HB150

Hydrostatic Test Test Pressure: 25kg/cm², 100% test before shipment Working Pressure: 16kg/cm²

Type Banded without ribs, Beaded with ribs, Beaded without ribs

Series Heavy, standard, medium, light

Certificate BSI, ANAB, ISO9001, FM, UL

Applications Suitable for Pipe lines connect of steam, air, gas, oil

and so on

Buyer’s drawings or designs are available

Package 1 - Cartons without pallets 2 - Cartons with pallets 3 - Double woven bags Or as buyer’s requirements

Delivery detail According to the quantities and specifications of each order
