Swing Check Valves - China

Valve description:

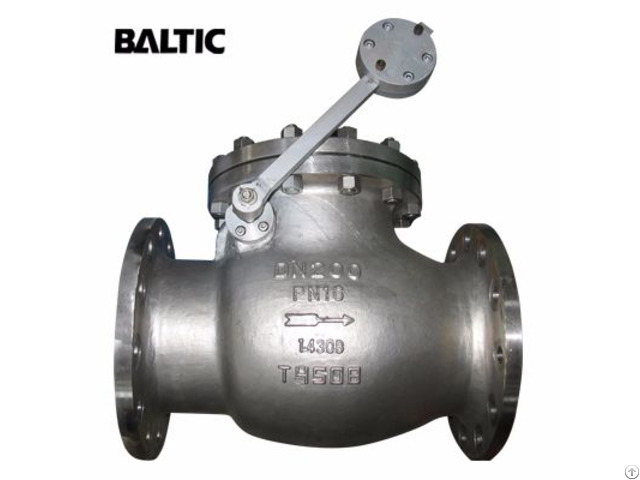

Name: swing type check valve with lever + counterweight.

Design: DIN 3356.

Body: 1.4308.

Nominal size: DN200.

Nominal class: PN16.

Connection ends: RF Flanged ends.

Face to face: EN558-1/line 48 (DIN 3202 F6).

Test and inspection: EN12266-1 - Technical parameters and characteristics

Product Swing type check valve

Nominal diameter NPS 2”～24” DN50～DN600

Design temp.

-196℃ ～ 593℃

Design pressure class 150 ～ 2500 PN 16 ～ PN420

Material A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B 148 C95800, C95500

Design standard BS 1868, API 6D DIN 3352

Face to Face ASME B16.10 EN558 series

Connection end RFF, RTJ, BW EN1092 series

Test standard API 598, ISO 5208 EN12266-1

Operation Application electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering

Function 1 Bolted cover

Function 2 API 6D – full bore

Function 3 BS 1868 – standard bore

Function 4 Inside of shaft/ outside of shaft

Function 5 Outside of shaft: could be mounted lever + counterweight

Function 5 Large size of check valve could be mounted hydraulic damping cylinder

Company Contact:

• Posted By: China Baltic Valve Manufacturing Co., Ltd

• Phone: +86 5928266140

• Address: No.217 Huizhannanli Road, Xiamen , Fujian , China

• Email:

• Website: https://www.baltic-valve.com

• Business Description: Concentrated on valve manufacturing, Baltic Valve Company is a pioneer in valve industry across the world.

  With excellent work ethic, the company has introduced the state-of-the-art equiptments to our clients for the past 15 years, such as ball valve, gate valve, check valve, globe valve, plug valve, butterfly valve, marine valve, forging steel valve and pipe filter, etc.

  Due to our continual high-quality services and stringent requirements of all processes from raw material selection to shipment.

  Balic has received appreciations from clients of European Countries and South America.

  Baltic is proud of competitive prices.
