Vibrator Hose With Reinforced Structure - China

price: check with company for price

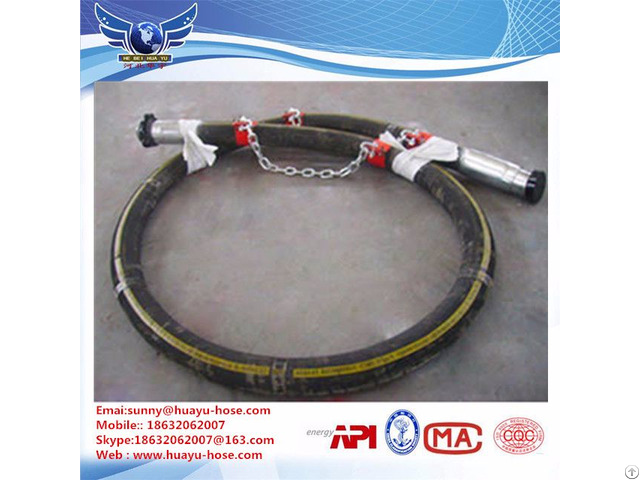

Vibrator Hose With Reinforced Structure

Products Photos Catalog Vibrator Hose Photos Catalog

Vibrator hose is mainly used as flexible connection between two pipes or between the pump discharge outlet and mud standpipe.

The installation of vibrator hose can reduce the vibration of the whole system to some certain.

Therefore, vibrator hose can make the whole system operate smoothly.

The structure of vibrator hose is the same as jumper hose.

In other words, it is composed of three parts: tube, reinforcement and cover.

The details of vibrator hose: Structure: vibrator hose is composed of three parts: tube, reinforcement and cover.

Tube: abrasion, oil and chemical fluids resistant synthetic rubber, mainly nitrile rubber.

Reinforcement: multiple layers of high tensile steel cables.

Cover: abrasion, weather, ozone and corrosion resistant synthetic rubber.

Inner diameter: 2.5" - 5.0" (63.5mm - 127mm).

Outside diameter: 4.14" - 7.41" (105.2mm - 188.2mm).

Working pressure: 34.5MPa - 51.7MPa (5000psi - 7500psi).

Testing pressure: 69.0MPa - 103.5MPa (10000psi - 15000psi).

Min burst pressure: 86.2MPa - 129.3MPa (12500psi - 18750psi).

Temperature range: -4°F to +180°F (-20°C to +82°C).

if you are interested in them, you can cantact us our email is sunny@huayu-hose.

com

Mobile/Whatsapp/Skype: 15503181064


Company Contact:


  • Phone: +8615503181064

  • Address: Jingxian Wencheng Industrial Zone, Hebei Province,China, Hengshui , Hebei , China

  • Email: Email


Published date: September 22, 2017

  • Business Description: Hebei Huayu Special Rubber Co., Ltd. is an integrated and innovative enterprise combining R&D, production and sales of various rubber series products.

    Main Product

    1 - API 7K rotary drilling hoses, BOP hoses, cement hoses and mud hoses

    2 - Concrete pump hoses

    3 - 1SN, 2SN, 3SN, 4SP, 4SH hydraulic hoses

    4 - Fire resistant hoses and choke line hoses

    5 - Air Grip Union , Special rubber seal, fittings and so on
