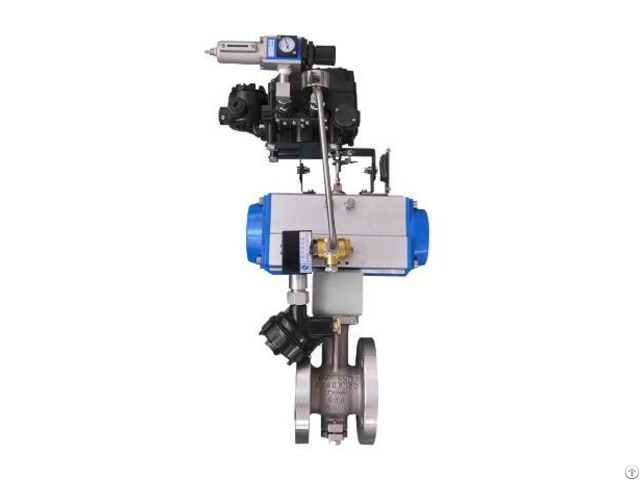

Vn61 Series V Notch Ball Valve - China

VN6 series, part of the spherical v-shaped incision ball core provides approximate equal percentage flow characteristic, is a use of v-shaped incision ball core within the scope of the small open degree on the sealing surface rotation and control of fluid flow regulating valve, Angle of v-shaped incision ball core increase significantly in the flow adjustable ratio at the same time, with special unique elastic match the lip of the structure of the sealing seat, the fiber and particle medium has excellent shear and prevent functions, making it especially suitable for large adjustable ratio control system, as well as to the fiber containing fluid, slurry type of fluid control.

Ball Valve for sale TECHNICAL PARAMETERS

Nominal Size DN25~DN300

Pressure Rating PN16/25/40;CL150(PN20)/30 0(PN50)

Operateing Temperature -46℃~400℃

Characteristics Approximate equal percentage

Rangeability 300: 1

Seat Leakage Class ANSI B16.104: IV, V, VI

Body Material WCB/WCC/LCB/LCC;WC6/WC9;C F8/CF8M;4A/5A etc.

Trim Material 304+Ni60/304+Ni55

Seal Material PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.

We are Ball Valve manufacturer

Product lists:

Globe valve

O ball valve

v shaped Ball Valve
