Vssjafc Cc2f Double Flange Limited Telescopic Joint - China

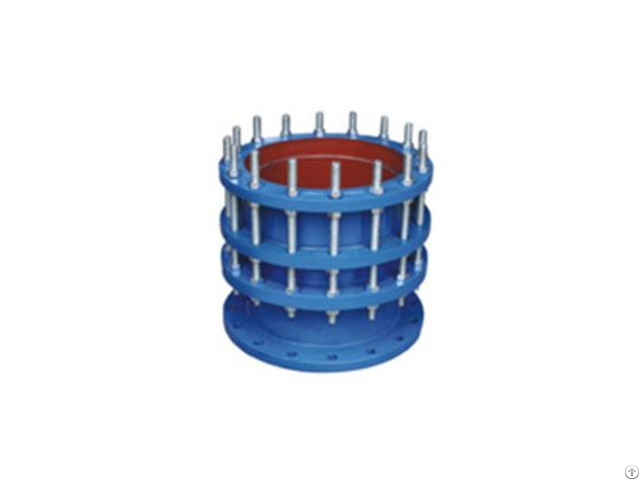

VSSJAFC (CC2F)Double flange limited telescopic joint

Dismantling Joint

VSSJAFC type detachable double flange transfer joint is suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam with a temperature not higher than 250 degrees.

And medium such as granular powder.

VSSJAFC type detachable double flange force transmission joint is suitable for the pipeline connecting both sides and flange.

When installing, adjust the installation length of both ends of the product and the flange, and tighten the gland bolt evenly in the diagonal direction to make it a Overall, and a certain amount of displacement, easy to install and repair, according to the size of the site to adjust.

The axial thrust can be transmitted to the positive pipe during operation.

No.

Name Quantity Material

1 Body 1 QT400-15, Q235A, ZG230-450, 20

2 Gasket 1 NBR

3 Follover 1 QT400-15, Q235A, ZG230-450, 20

4 Limited short pipe 1 Q235A, 20, 16Mn

5 bolt 5 Q235A, 35, 1Cr8Ni9Ti

6 nut 5n Q235A, 20, 1Cr8Ni9Ti
