Vssjafg Cf Single Flange Power Delivery Joint - China

Dismantling Joint

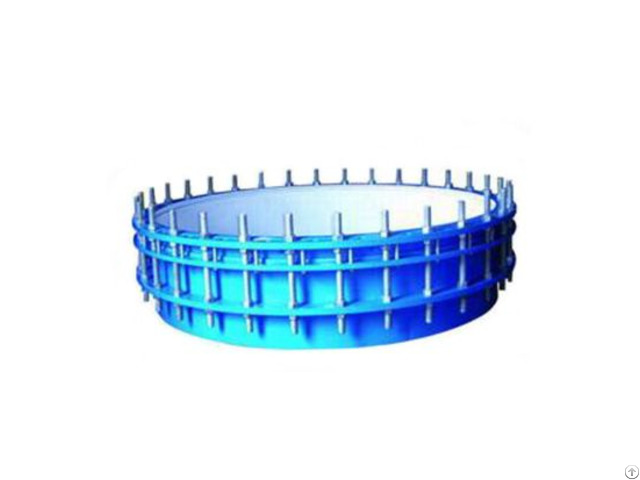

The VSSJAFG single flange force transmission joint is suitable for one side to be connected to the flange and one side to the pipe.

During installation, adjust the installation length of both ends of the product and the pipe or flange.

After installation and welding, tighten the gland bolts evenly diagonally to make it a whole, and have a certain amount of displacement, which is convenient for installation and maintenance.

Size is adjusted.

The axial thrust can be transmitted to the entire pipe during operation.

The power transmission joints are classified into: single-flange force transmission joints, double-flange force transmission joints, and detachable double-flange force transmission joints.

The force transmission joint materials are: Q235 carbon steel, stainless steel, cast steel, ductile iron and so on.

Different materials and models are used for different purposes.

No.

Name Quantity Material

1 Valve body 1 QT400-10, Q235A, ZG230-450, 20

2 Gasket 1 NBR

3 Follower 1 QT400-10, 235A, ZG230-450, 20

4 Limited short pipe 1 Q235A, 20, 16M

5 bolt n Q235A, 35, 1Cr18Ni9Ti

6 Nut Tn Q235A, 20, Cr18Ni9Ti

MAIN DATA

Nominal Diameter DN External diameter of pipe Length Flange connection size 0.6Mpa 1.0Mpa Dw do L △L D D₁ n-Th b D D₁ n-Th b

65 76 76 400 40 160 130 4-M12 16 185 145 4-M16 20

80 89 89 190 150 4-M16 18 200 160 8-M16 22

100 114 114 210 170 220 180 24

125 140 140 240 200 8-M16 20 250 210 26

150 168 168 265 225 285 240 8-M20 200 219 219 320 280 22 340 295 28

250 273 273 375 335 12-M16 24 395 350 12-M20 300 325 325 420 50 440 395 12-M20 24 445 400 12-M20 28

350 377 377 490 445 26 505 460 16-M20 30

400 426 426 540 495 12-M20 28 565 515 16-M24 32

450 480 480 595 550 28 615 565 20-M24 32

500 530 530 645 600 20-M20 30 670 620 34

600 630 630 440 755 705 20-M24 30 780 725 20-M27 36

700 720 720 860 810 24-M24 32 895 840 24-M27 40

800 820 826 600 60 975 920 24-M27 34 1015 950 24-M30 44

900 920 926 1075 1020 24-M27 36 1115 1050 28-M30 46

1000 1020 1026 1175 1120 28-M27 36 1230 1160 28-M33 50

1200 1220 1226 620 1405 1340 32-M30 40 1455 1380 32-M36 56

1400 1420 1428 1630 1560 36-M33 44 1675 1590 36-M39 62

1600 1620 1628 630 1830 1760 40-M33 48 1915 1820 40-M45 68

1800 1820 1828 2045 1970 44-M36 50 2115 2020 44-M45 70

2000 2020 2030 650 2265 2180 48-M39 54 2325 2230 48-M45 74

2200 2220 2230 2475 2390 52-M39 60 2550 2440 52-M52 80

2400 2420 2430 2685 2600 56-M39 62 2760 2650 56-M52 82

2600 2620 2630 750 80 2905 2810 60-M45 64 2960 2850 60-M52 88

2800 2820 2830 3115 3020 64-M45 68 3180 3070 64-M52 94

3000 3020 3030 3315 3220 68-M45 70 3405 3290 68-M56 100

3200 3220 3230 3525 3430 72-M45 76
