Astm A217 Wc6 Globe Valves - China

Valve description:

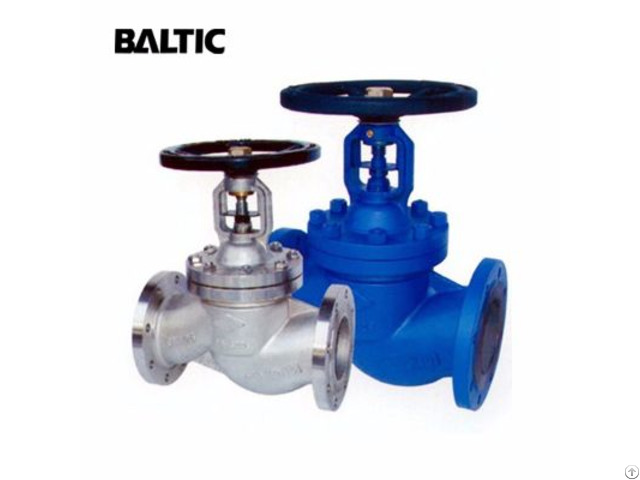

Name: Globe Valve with Bellows Seal.

Design: DIN 3356.

Body: ASTM A217 WC6.

Nominal size: DN200.

Nominal class: PN40.

Connection ends: RF Flanged ends.

Face to face: EN558-1/line 1 (DIN 3202 F1).

Test and inspection: EN12266-1 - Technical parameters and characteristics

Product Globe valve with bellows seal

Nominal diameter NPS 2”～24” DN50～DN600

Design temp.

-29℃ ～ 593℃

Design pressure class 150 ～ 2500 PN 16～PN420

Material A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC

A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B 148 C95800, C95500

Design standard BS 1873, ASME B16.34 DIN 3356

Face to Face ASME B16.10 EN558 series

Connection end ASME B16.5, ASME B16.25 EN1092 series

Test standard API 598, ISO 5208 EN12266-1

Operation Hand wheel, bevel gear, electric, pneumatic

Application electric power, petroleum refining, petrochemical engineering, offshore oil, tap water engineering in urban construction, chemical engineering

Function 1 With bellows seal for toxic medium

Leakage grade A

Function 2 OS&Y, bolted bonnet, rising stem

Function 3 Short stroke for easy – quick open/close

Function 4 For big size and high pressure: relief cone = internal bypass

Function 5 Disc sealing could be: flat sealing, throttle cone=regulating disc

Function 6 Body seat could be threaded seat or welded seat
