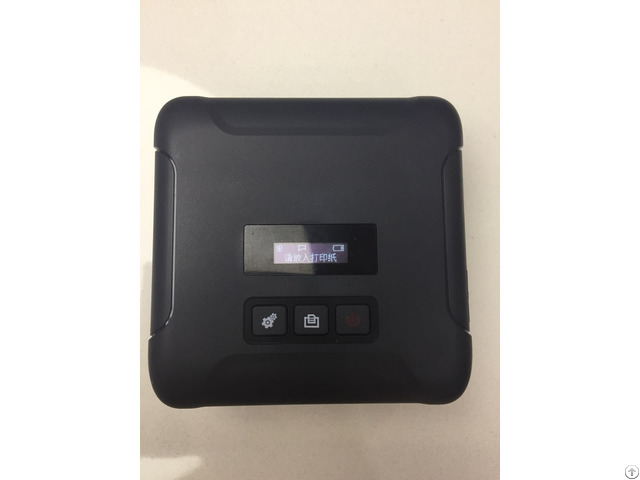

Atp Bp34 Portable Bluetooth Thermal Printer - China

Features: With easy loading mechanism design;

With integrated control board;

Support Windows driver;

With USB1.1 communication interface, bluetooth interface, and wireless WiFi interface on control board; Specification:

Paper width (mm): 80mm

Print width : 72mm 5V: 80mm/s

Reliability: 50KM "Printing

打印" Print Method Line thermal printing 打印模式 热敏行打印 Print speed 80mm/s 打印速度 Print Width 72mm 打印宽度 Dot density 203dpi 点密度 Paper width 80mm 纸宽 Paper thickness 0.05-0.22mm 纸厚 0.05-0.22mm Paper diameter 42mmmm 纸卷直径 Interface MicroUSB, Bluetooth2.0+4.0双模蓝 牙 接口 Character English, Chinese, Number, Various symbols 字体 英语, 中文, 数字以及其他符号 "Barcode

条码 " character set ASCII；GBK(GB18030) ；Unicode； 字符集 "Barcode mode

" EAN－8；EAN－13；ITF� ��UPC－A；UPC－E；Cod ebar；Code 93；Code39；Code128； 单维条形码模式 "2d barcode

" QRcode, PDF417, DataMatrix, GridMatrix 二维条形码模式 Instruction set ESC／POSCPCL 命令集 "Physicalproperties

物理特性" Dimension 105mm*106mm*46mm 尺寸 Weight(including 360g(Batteryincluded, Nopaper) battery) 重量(包括电池) Shell material ABS 外壳材料 "Power

电源" Power adaptor Input: 100-240AC0.5A, Output: 5V2ADC, 4.5hfull 电源适配器 输入：100-240AC0.5A, 输出：5V2ADC, 4.5hful Lithium battery 7.4V/2600mAh 锂电池 "Environment

环境" Work Environment Temperature：0～50℃, Humidity：35～85% No condensation 工作环境 温度：0～50℃, 湿度：135～85% No condensation Storage environment Temperature：－20～60� ��, Humidity：10～90% No condensation 储存环境 温度：－20～60℃, 湿度：10-90%RH "Reliability

可靠性" Print life 50Km(12.5%Print density) / 1million pulses 机芯 50KM Battery life 500 cycles of charge and discharge 电池寿命 Maximum charge print length ≈270m Drop 1.2m Free fall ESD 3000V
