Cvbs Iptv Encoder - China

Product Profile

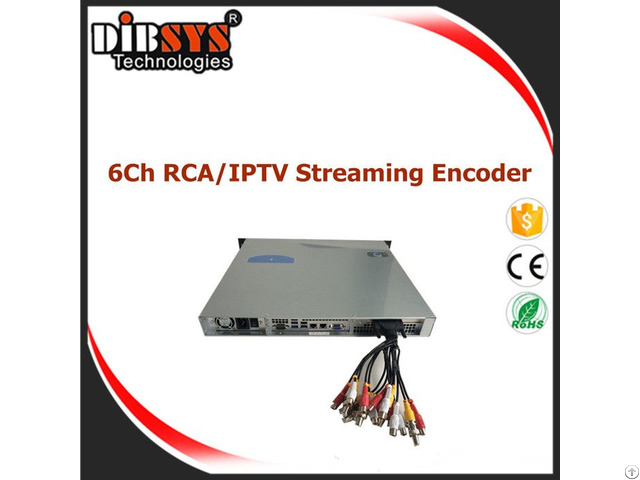

Caster-T300 high-performance standard definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner.

A real-time multi-channel, codec, format IP-based encoder for multi- screen delivery (TV, Mobile, and Web).

With the support for various encapsulation formats base on embedded Linux operating system appliances.

It relies on an Intel 16 or more Core CPU as an accelerator.

Caster-T300 can push/pull an MPEG-2, H.

264, MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP/HL S protocols.



Features

Up to 6/12/18/24 Composite, R/L analog audio per chassis

Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.

Creates simultaneous High, Medium, and Low bitrate streams (profiles)

Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/ web, Set top box applications

SD MPEG4/H.

264/MPEG-2 to any resolution encoding

Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

GbE IP outputs – UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files

Audio support: AAC, MPEG, MP3 or Dolby Digital AC-3 passthrough

High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

Based on embedded Ubuntu Linux

Superior video quality at ultra-low bitrates, generally video advised SD about 500kbps for lowest bitrate

Selectable any resolution from QSIF to 576p

Compatible with external MPEG-DASH packager for OTT delivery (option)

Supports logo insertion and text overlay on outputs

Designed for 24*7*365 uninterrupted working

Easy-to-Use System Management

Web Management



Main Application

Digital broadcast and Multi-screen headend

IPTV, Over-the-air TV distance learning

Mobile, Broadcast, Internet TV/Web TV

VOD content encoding

Technical Specifications

Input

Baseband input 6x Composite, R/L analog audio

12x Composite, R/L analog audio

18x Composite, R/L analog audio

24xComposite, R/L analog audio

Output

IP Output type Two Gig Ethernet Ports

ASI output type Mutliplexed (optional)

Streaming format MPEG-2/H.

264/H.

263/MPEG4 SP/MPEG4 ASP;

MPEG-1 Layer II, AAC, AC3, AMR, WMA , MP3

TS Over UDP/RTP/HTTP

3GP Over RTP

FLV Over HTTP/RTMP

HTTP Live streaming

Apple HLS (m3u8)

File Output

Encoding 3GPP/3GPP2/WMV/FLV/TS

File output support timing and capacitive record

Pre-processing

Image setting Video adjustments（Brightness, contrast, Saturation, Hue）

Frame rate from 2fps to 30fps

Aspect ratio 4: 3 and 16: 9, WSS control

Image insertion LOGO insertion

Subtitle Overlay Static or roll subtitle, up to 3 way (optional)

PID Configuration Depending on the configuration, it forwards selected programs

via IP datacasting; PAT, PMT, video PID, audio PID(s) and PCR

information are transmitted.

Video encoding

Bitrate mode VBR, CBR

Resolutions 80x64, 176x120, 128x96 (4: 3), 176x128, 144x80, 176x144, 144x140 , 220x176, 160x90 (16: 9), 240x176, 320x240, 352x288, 400x300, 480x360, 720x576, 854x480(16: 9)

Max channels per RU Signal Input H.

264 Out Channels Notes

CVBS SD

in 1.5Mbps 6 streams Take those information as reference only.

For details contact us

12 streams

Up to18 streams

Up to 24 streams

Up to multiple concurrent outputs per one stream input

Video codec H.

263 Profile0, Levels 10, 20, 30

MPEG-4 SP, Levels 0, 0b, 1, 2, 3

H.

264 Baseline Levels 1, 1b, 2, 3

H.

264 Main Profile/High Profile 3.0- 5.1

MPEG-2 MP@ML 4: 2: 0

GOP Size I-Frame Time Interval; B-Frame Number; Reference Frame

Video Bitrate 32kbps to 4Mbps

Enhancement filter Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing

Audio encoding

Audio encoding LC-AAC, HE-AAC and HE-AACv2 (including Parametric Stereo)

MPEG-1 Layer, AC3, MP3

Sample rate 8khz to 48khz

Data rate 8kbps to 384kbps

Management

Interfaces LCD display, key button, WEB

Environment

Power Supply 110-240 VAC

Operation temperature 0~50℃ (32 -122°F)

Storage temperature -40-70°C (-40-158°F)

Power Consumption 50W

Dimensions 483mm (W) x 534mm (L) x 45mm (H)

Weight 11kg (24lbs)
