Dr342 Ar9342 2x2 5g High Power 1x10 100 1000m Ge - China

price: 200.00 Dollar US$

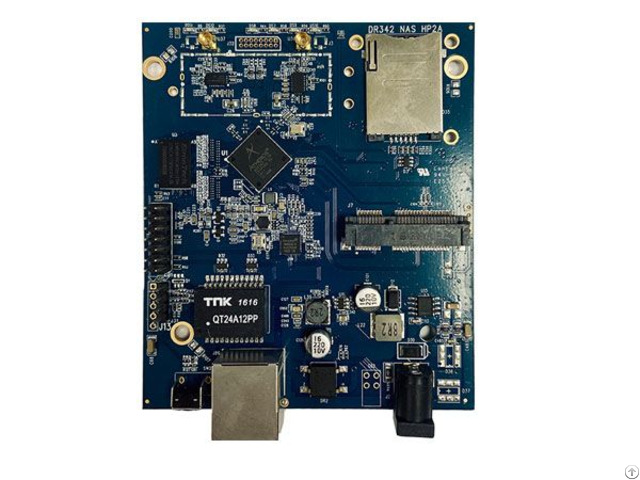

Dr342 Ar9342 2x2 5g High Power 1x10 100 1000m Ge

Products Photos Catalog Dr342 Ar9342 2x2 Power Photos Catalog

Featuring with industrial-grade Atheros’s AR9342(533 MHz) chipset DR342

Integrated with 2x 2 5G high power (up to 30dBm aggregate ) Radio Card

5.180GHz to 5.825GHz Frequency Range

1x10/100/1000Mbps Gigabit Ethernet Port

2 x 5G MMCX Connectors

20M/40M Bandwidth

Support LTE/WiFi Card

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Absolute Maximum Rating Parameter Rating Unit

Supply Voltage 0 to +56 V

Operating Temperature Range -40 to +70 ºC

Storage Temperature Range -65 to +105 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Operating Conditions Parameter Rating Unit

Supply Voltage(DC Jack) +12 to +56 V

POE +24 to +56 V

Temperature -40 to +70 ºC Hardware Specifications Symbol Parameter

CPU Atheros AR9342 530MHz processor frequency

System Memory 64M DDR2

NOR Flash 16MB

Switch IC Atheros AR8035-AL1AR 1 GIGA port PHY/RGMII switch

Power IC TI/TPS5436

Power consumption 6W(Board Only)

1000MLAN port

POE define Pin 4/5 and pin 7/8 connect to the anode or cathode respectively

POE input

Antenna Connector 2 x 5G MMCX connectors

Power Connector 1 x DC JACK D(center)=2.1mm Max 50V DC

Power Solution DC Jack Input: 12-56V, Passive POE: 24 -56V

LAN Connector 1 x 1000M LAN port

ROHS Compliance YES

Reset Button RT push button

Dimension 99mm x 85mm x 16mm

Socket Height Mini PCIE 9.2mm


Company Contact:


  • Phone: 17366272175

  • Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China

  • Email: Email


Published date: January 11, 2022

  • Business Description: The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.

    To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.
