Dr9074 6e Pn02 7 Qcn9074 11ax  4x4 6g  M 2  - China

price: 200.00 Dollar US$

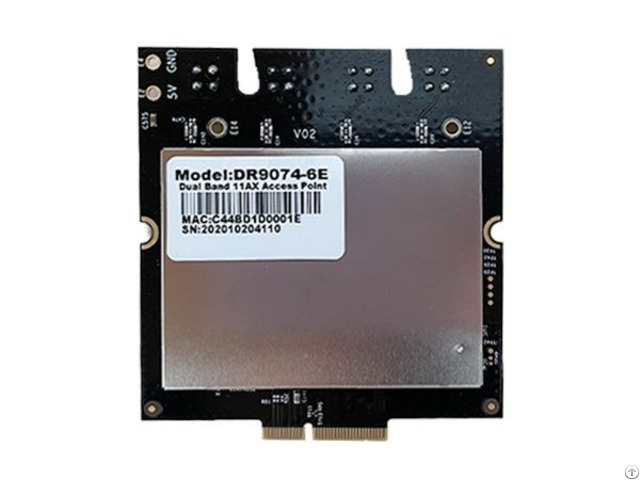

Dr9074 6e Pn02 7 Qcn9074 11ax  4x4 6g  M 2 

Products Photos Catalog Dr9074 Pn02 Qcn9074 Photos Catalog

QCN9074 802.11a x 4x4 MU-MIMO 6GHz wifi6E Features Qualcomm Atheros QCN9074 6GHz, max 23dBm per chain, up to 4949Mbps Single Band 6GHz 4x4 WiFi 6E (802.11ax) 4 spatial streams (4SS) M.

2 E Key Interface PCI Express 3.0 Interface Absolute Maximum Rating Parameter Rating Unit

Operating Temperature Range -20 to 70 ºC

Storage Temperature Range -40 to 90 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

Chipset Qualcomm Atheros QCN9074

WLAN Host Interface PCI Express 3.0 Interface

System Memory 2Mbit serial I²C bus EEPROM

Standard Operating Voltage 5V

Operating Systems QSDK

Host Interface M.

2 E Key

Antenna Cable / Port 4 x MMCX Connectors, 4T4R

Frequency Range 5.925GHz-7.125GHz


Company Contact:


  • Phone: 17366272175

  • Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China

  • Email: Email


Published date: January 11, 2022

  • Business Description: The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.

    To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.
