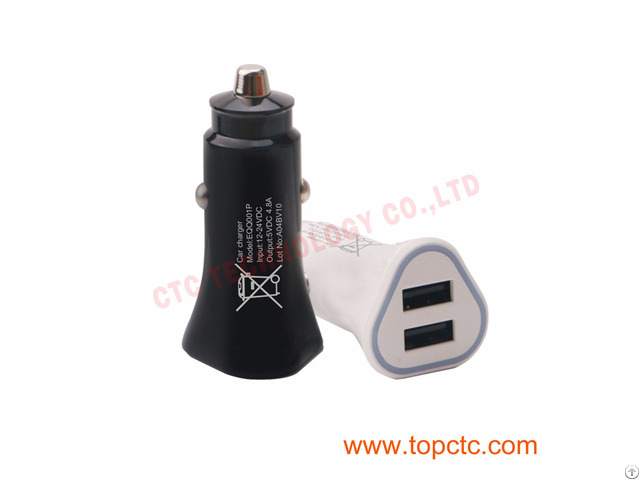

Eqq001p Dual Qc3 0 Dc Car Charger - China

Input Characteristics 1 - Input Voltage: 10VDC-28VDC 2 - Rated Input: 12VDC-24VDC 3 - Input Current: 2.8A Max 12VDC~24VDC Output Characteristics 1 - Rated Output Voltage: DC5V /DC9V /DC12V

2 - Output Voltage Tolerance: DC4.25V - 12.25V

3 - Output Voltage Regulation: ±5%

4 - Rated Load:

USBA 1 : QC3.0 5V 3.1A 9V 2.5A 12V 2A;

USBA2 : QC3.0 5V 3.1A 9V 2.5A 12V 2A;

USA1+USA2=5V 4.8A

Fast charge is supported on any single port, the ports will output 5V when two ports have attached devices at which the overall output power is 5V/4.8A.

5 - Output Ripple Voltage: Below 150mV (Input Voltage 100VAC-240V AC)

Testing condition: Ripple testing, By using 10UF electrolytic capacitor and 0.1UFcapacitor parallel with output terminal, the bandwidth limit- 20MHz.

6 - Output Power: 24W

7 - Efficiency: Minimum-88.00% Protection Function 1 - Over Current Protection(OCP): 3.8A

2 - Over Voltage Protection (OVP): YES

3 - Output Short Circuit Protection: There's no output once short circuit occurred.

4 - Over Temperature Protection(OTP): The IC temperature can reach 135ºC Working and Storage Environment 1 - Operating Temperature: 0°C to 40°C

2 - Storage Temperature: -20°C to +85°C 3 - Operating Humidity: 10% to 90% (non-condensing)

4 - Storage Humidity: 5% R.

H to 95%R.

H

5 - Atmospheric Pressure: 70-106KPa Burn-in Test Input DC12V loading: Rated Load, Room temperature, 100% 1 hours burn-in without abnormal.

Safety requirement Safety: accord with IEC 60950-1 - Casing Temperature 12VDC-24VDC Full load: 100%, temperature rising less than 65K.
