Hdmi To Ip H 264 Encoder - China

Product Profile

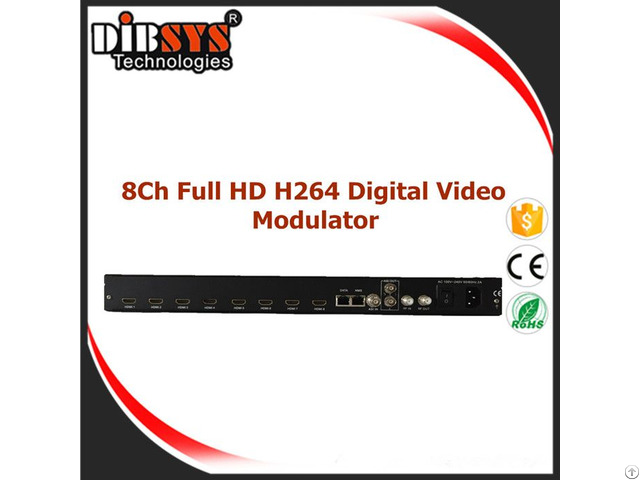

The EMI3381 is a Cost-effective, high definition MPEG4 AVC broadcast distribution encoder with QAM modulation and RF up- conversion built in.

It has equipped with up to 8 channels of HDMI inputs, 1 ASI input, and output with 2 ASI ports, 1 UDP IP port, and 1 RF port.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc.

Its output signal is to be received by a DVB-C/DVB-T/ATSC/ISDB-T standard TV, STB.

The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising.

It also can be used for monitoring, training and educating in company, schools, campuses, hospital… besides that it’s a good choice for bars to offer HD sports channels, for VIP entertainment channels, and more.

HighLights



Up to 8 channel HDMI(HDCP) Encoding per chassis

Simultaneous outputs via IP, DVB-ASI and modulated interfaces

Support Single, Dual, Quad Modular channel out

Advanced MPEG-4 AVC HP@L4 video compression

ASIC technologies which offer broadcast video quality, generally video bitrate advised 720p about 2mbps, 1080p about 5mbps for lowest bitrates

HDMI 1.3a interface, Auto detect the HDMI input of resolutions

Resolution: 1080p, 1080i, 720p@50/60Hz, 576p, 480p

RF attenuation range is from 0~-24dbm (81~97dbμV) with 0.1db step.

Cascading via DVB-ASI or RF Port

Excellent modulation quality MER≥42dB

Optional DVB-C(QAM), DVB-T(COFDM), ATSC-T, ISDB-T modular

RF frequency: 30-1000MHz, 1khz step

High performance standard of Encoder/Modulator

with superior RF specifications, stream and

processing functionality

PSI/SI generate and NIT insertion, LCN modify

PID filter, Pass and remapping

High quality video and audio outputs

Management via WEB, Local front panel with LCD

Easy-to-Use System Management

Main Application

DVB distribution

Private Cable, Hospitality, Medical, Education

School, company and Hotel
