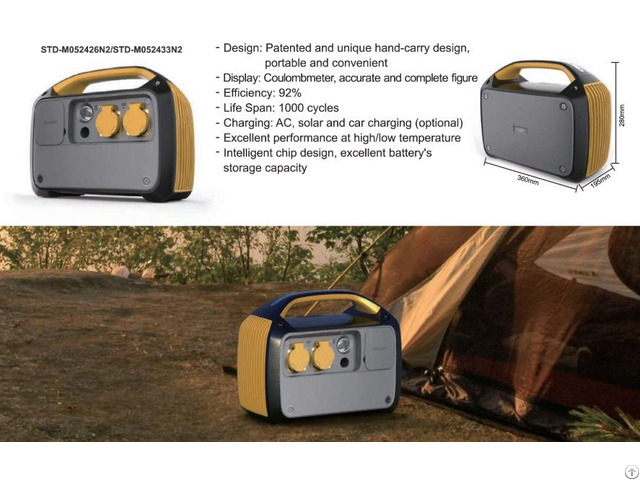

STD-M052426N2 Portable Multi-functional power generator, with 220V 50HZ pure sine wave AC output, rated power of 300W.

Please read the followings before using: 1 - The load input voltage and frequency must be same as STD-M052426N2 power Generator.

2 - Please make sure that the rated power and the peak power of load appliance is less than STD-M052426N2 power generator.

* Load appliances will not work or will be damaged if you do not use the power generator in correct way.

* If the power of load appliances are more than that of the device, please choose our another suitable model.

Note: The power consumption of some load appliances is greater than its nominal power when start, such as inductive load device, then it will exceed the max power of the STD-M052426N2 power, so it will power off.

How to operate the equipment in terms of AC output:

Step 1：Turn on AC output switch, and then LCD display will be on.

Step 2：Please carefully Check whether the electrical appliances specifications (like voltage and frequency) are consistent with the power generators’ before use.

Otherwise it can lead to dangerous situations.

Step 3：Put the electrical appliance’s plug into the 110V AC output port, and then turn electrical appliance switch on.

Step 4：After using the equipment, do not forget to turn off all its switch.

Step 5：When the equipment is out of power, do not forget to charge it.

(Note: If you do not turn off AC output after using it, the energy of the equipment will be lost rapidly.

) 5.2 How to use USB5V, DC 12V output ports

5.2.1 How to use USB 5V output Turn on the DC output switch and then connect the DC electrical appliance to the port.

5.2.2 How to use DC12V output Turn on the DC output switch and then connect the electrical appliance to DC 12V output port.

The current must be less than 10A.

5.3 How to charge the equipment: The equipment’s capacity is 500WH which can be charged in following 2 ways: ① Charge the equipment with our company’s adapter.

Connect one end of the adapter to the equipment and another end to the AC power generator socket.

②Charge the equipment with Solar panels, only need to connect one end of the cable connected to the solar panel, the other end into the DC charging interface which can charge the power generator.
