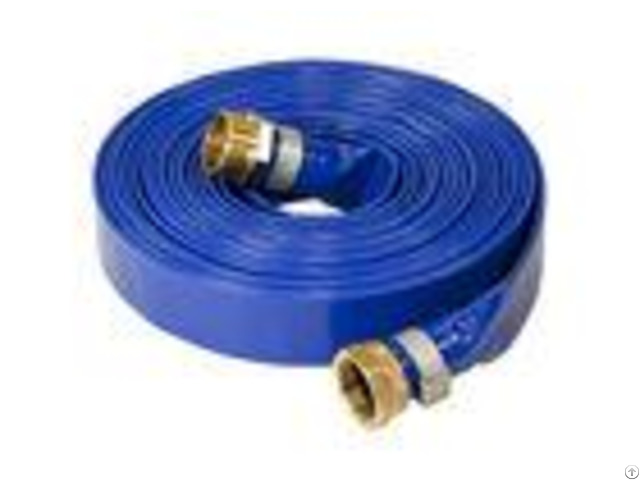

Durable Pvc Layflat Hose Pipe Uv Resistant Flexible With Coupling Fittings - China

pvc layflat water hose / pipe with coupling fittings for agriculture industry use - - - - size available | from1 inch to 16 inch | Color | Blue / Orange / Yellow / Red / Green etc.

| Length per roll | 10m/30m/50m/100m Or Customized | burst pressure | 6bar - 30bar | features | non-toxic, durable, flexible, UV-resistant | reinforcement | high strength polyester yarn | - - - - Products Feature: 1 - Made of high strength polyester yarn and PVC new material; 2 - High resistance against pressure, corrosion resistance, aging 3 - light weight, good flexibility, bright color and smooth coating; 4 - Easy to move and low the installation costs 5 - Keep the tube body soft and elastic under low temperature conditions 6 - Resist kinking and twisting, abrasion, corrosion, high pressure and terrible weather.

7 - Lightweight, flexible, easy for rolling-up and storage.

8 - Multi-purpose, which used for irrigation, cement filing, river-way sand extraction, water discharge in construction site.

9 - Made of environmental materials, non-smell, non-toxic, healthier.

10 - New technique: unique one-step forming, high adhesion between lining, reinforcement plies and cover.

11 - New character, higher bursting pressure, lighter weight and better abrasion resistance than traditional lay flat hose Application: Agricultural water supply and irrigation, Garden irrigation, Industrial water supply and discharge, Car washing, Daily House cleaning and Other cleaning equipment.

Widely used in agriculture Irrigation, landscape, environmental protection, fire protection, construction, engineering, drainage, mining, orchard, etc.

Packing: Wrapped by plastic woven cloth and be fixed with ropes or packing straps Specification: Standard Duty PVC Layflat Hose - - - - Inner Diameter | Wall Thickness | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1 | 25 | 0.047 | 1.20 | 0.15 | 5 | 75 | 100 | 300 | 1-1/4 | 32 | 0.047 | 1.20 | 0.17 | 5 | 75 | 100 | 300 | 1-1/2 | 38 | 0.049 | 1.25 | 0.19 | 5 | 75 | 100 | 300 | 2 | 51 | 0.043 | 1.10 | 0.22 | 4 | 60 | 100 | 300 | 2-1/2 | 64 | 0.047 | 1.20 | 0.30 | 4 | 60 | 100 | 300 | 3 | 76 | 0.047 | 1.20 | 0.35 | 4 | 60 | 100 | 300 | 4 | 102 | 0.047 | 1.20 | 0.53 | 4 | 60 | 100 | 300 | 5 | 127 | 0.053 | 1.35 | 0.75 | 4 | 60 | 100 | 300 | 6 | 153 | 0.053 | 1.35 | 0.90 | 4 | 60 | 100 | 300 | 8 | 203 | 0.071 | 1.80 | 1.60 | 3 | 45 | 100 | 300 | 10 | 254 | 0.094 | 2.40 | 2.60 | 3 | 45 | 50 | 150 | 12 | 305 | 0.094 | 2.40 | 3.10 | 2 | 30 | 50 | 150 | 14 | 358 | 0.118 | 3.00 | 5.00 | 2 | 30 | 50 | 150 | 16 | 408 | 0.118 | 3.00 | 6.00 | 2 | 30 | 50 | 150 | - - - - Medium Duty PVC Layflat Hose: - - - - Inner Diameter | Wall Thickness | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1 | 25 | 0.051 | 1.30 | 0.16 | 8 | 120 | 100 | 300 | 1-1/4 | 32 | 0.051 | 1.30 | 0.19 | 7 | 100 | 100 | 300 | 1-1/2 | 38 | 0.051 | 1.3 | 0.21 | 7 | 100 | 100 | 300 | 2 | 51 | 0.053 | 1.35 | 0.30 | 6 | 90 | 100 | 300 | 2-1/2 | 64 | 0.057 | 1.45 | 0.40 | 6 | 90 | 100 | 300 | 3 | 76 | 0.057 | 1.45 | 0.50 | 6 | 90 | 100 | 300 | 4 | 102 | 0.071 | 1.80 | 0.80 | 6 | 90 | 100 | 300 | 5 | 127 | 0.075 | 1.90 | 1.08 | 6 | 90 | 100 | 300 | 6 | 153 | 0.094 | 2.40 | 1.60 | 6 | 90 | 100 | 300 | 8 | 203 | 0.103 | 2.60 | 2.20 | 5 | 75 | 50 | 150 | - - - - Heavy Duty PVC Layflat Hose: - - - - Inner Diameter | Wall Thickness | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1 | 25 | 0.060 | 1.50 | 0.19 | 10 | 150 | 100 | 300 | 1-1/4 | 32 | 0.060 | 1.50 | 0.21 | 10 | 150 | 100 | 300 | 1-1/2 | 38 | 0.071 | 1.7 | 0.29 | 10 | 150 | 100 | 300 | 2 | 51 | 0.061 | 1.55 | 0.35 | 8 | 120 | 100 | 300 | 2 | 51 | 0.069 | 1.75 | 0.40 | 10 | 150 | 100 | 300 | 2-1/2 | 64 | 0.079 | 2.00 | 0.60 | 10 | 150 | 100 | 300 | 3 | 76 | 0.079 | 2.00 | 0.66 | 8 | 120 | 100 | 300 | 3 | 76 | 0.095 | 2.40 | 0.80 | 10 | 150 | 100 | 300 | 4 | 102 | 0.083 | 2.10 | 0.92 | 8 | 120 | 100 | 300 | 4 | 102 | 0.095 | 2.40 | 1.00 | 10 | 150 | 100 | 300 | 5 | 127 | 0.075 | 1.90 | 1.08 | 10 | 150 | 100 | 300 | 6 | 153 | 0.118 | 3.00 | 2.00 | 8 | 120 | 100 | 300 | 8 | 203 | 0.126 | 3.20 | 2.80 | 6 | 90 | 50 | 150 | - - - -
