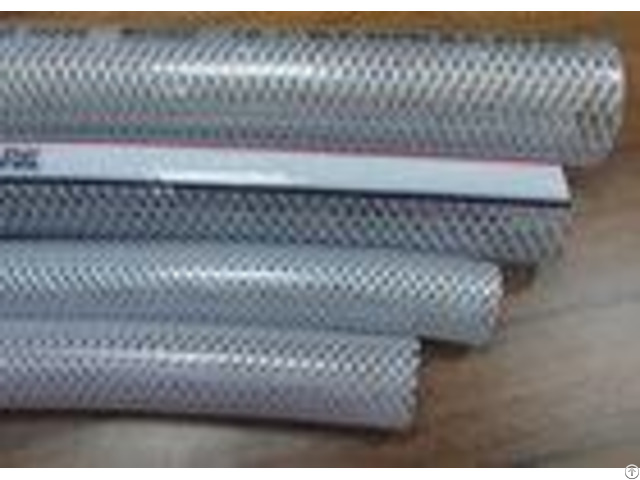

Flexible Pvc Braided Hose Food Grade Clear Drinking Water Pipe Sgs Standard - China

flexible food grade clear pvc nylon braided hose / drinking water pipe with FDA REACH ROHS - - - -

specification | 1/5inch to 3inch | Color | Clear, Orange, Yellow, Redor customized | length | 150ft, 300ft or customized | standard | SGS, ISO, ROHS | features | food grade, flexible, durable | application | milk, wine, beer, juice, food use etc.

| - - - - structure:

Inner tube: Super PVC resin, smooth wall

Reinforcement: High strength polyester cord

Cover: Abrasion resistant pvc compound cover, firmly stick to inner tube.

Characteristics:

1 - The hose made with the special formula, non-toxic and odorless.

2 - It is the ideal choice to convey milk, beverage, distilled liquor, beer, fruit jam and other liquid goods.

3 - It has good adaptability to the high pressure conditions and can keep its sharp well.

4 - It is light, flexible, durable, anti-erosion, and explosion resistant.

5 - made of tough PVC materials and high tensile polyester reinforcement, this hose can work under very high working pressure.

usage:

as delivery hose for food, drink, liquid including ultra pure liquid & disinfection liquid, wine (liqueur, red wine, rice wine, beer); it is ideally choice for delivering fluid of beer, food, wine, drink, dairy, fragrance, MSG, cosmetics, fine chemical, medical, bioengineering.

The hose is also widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine components, machine service and civil engineering equipments.

Specification: - - - -

Inner Diameter | Wall Thickness | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1/5 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 | 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 | 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 | 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 | 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 | 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 | 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 | 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 | 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 | 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 | 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 | 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 | 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 | 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 | 3 | 76 | 0.630 | 8 | 2.750 | 4 | 60 | 50 | 150 | - - - -
