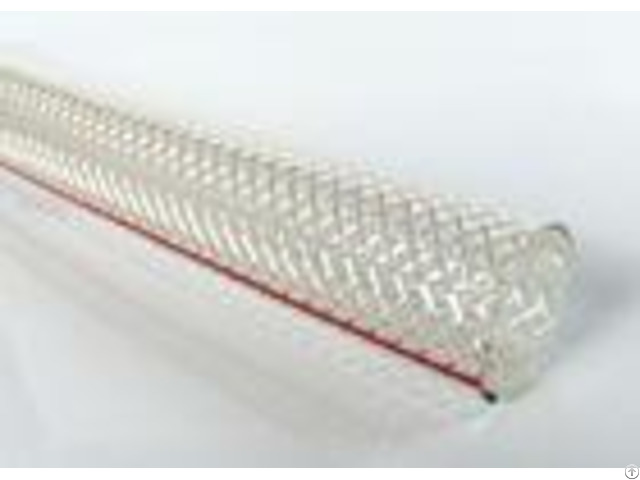

Non Toxic Pvc Flexible Hose High Strength Fiber Reinforced Pipe Tubing - China
price: check with company for price
non-toxic flexible pvc clear fiber braided reinforced hose / pipe / tubing - - - - Inner Diameter: | 19mm-406mm | Color | Clear, Blue, Orange, Yellow, Red | Quality Grade: | Food Grade, No Toxic Grade, No Smell Grade | Connection: | Camlock, KC Nipple, Hose Mender, Bauer, Storz, Pin Lug | Transporting Medium: | Water, Oil, Air | Application: | Plant, Farm, Construction, Mining And Family | - - - - Pvc clear braided hose is also called PVC fiber hose, clear braided hose, PVC braided hose, fiber hose, PVC fiber reinforced hose etc.
Which is an ideal hose designed for transfer in any industrial and agricultural application.
1 - The clear pvc hose reinforced, non-toxic braided vinyl tubing has all of the same qualities as our clear, non-reinforced vinyl tubing product but can also handle medium pressure applications.
It is formulated with clear PVC compounds, is BPA free and reinforced with spiral polyester yarn.
It is constructed with non-toxic compounds and the clear construction allows for visual confirmation of product flow and easy location of obstructions.
2 - Our clear braided vinyl tubing has been formulated to meet applicable 3A, and NSF criteria and may be steam sterilized.
Manufactured to have a smooth interior and exterior, our vinyl tubing prevents solid or sediment accumulation and is relatively impervious to bacterial and pathogenic action.
It is lightweight, strong, yet very flexible and can easily stand up to situations requiring rough handling while maintaining dimensional stability.
3 - In addition, because its reinforced with a special thread, it can handle applications that require more pressure than our standard vinyl tubing.
Braided vinyl tubing is lightweight, self-extinguishing, non-marking and resistant to chemicals.
Trimming or cutting is simple and can be clamped using hose, wire or ratcheting clamps using barbed fittings or connectors.
Construction: The tube and cover are extruded from high quality crystal clear virgin PVC compound, reinforced with high tensile quality polyester thread, one longitudinal ply and two spiral plies, which offers high working pressures and excellent flexibility.
Features: Good flexibility, non toxic, excellent transparency, good abrasion resistance, high resistance to alkalis/acids, good weather resistance, non-inflated under high pressure, silicone free, UV resistant, light weight, easy to handle and short length available.
Application: To be used for high pressure transfer of various Fluids and Powder, such as air, water, oxygen, fuel, gas, cement and gasoline to chemicals, in plant equipment, mining industry, sanitation lines, bilge drain lines and many other industry applications.
Specification: - - - - Inner Diameter | Wall Thickness | Weight | W.P.(at 23) | Std Length | inch | mm | inch | mm | kg/m | bar | psi | m | ft | 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 | 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 | 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 | 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 | 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 | 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 | 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 | 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 | 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 | 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 | 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 | 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 | 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 | 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 | 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 | 3 | 76 | 0.630 | 16 | 2.750 | 4 | 60 | 50 | 150 | - - - -
Company Contact:
- Posted By: QINGDAO EASTOP PLASTIC PRODUCT CO.,LTD
- Phone: 86-532-83860726
- Address: 2223 Building C, VANKE Center, Fuzhou Road, Qingdao, Shandong, China , Qingdao , Shandong , China
- Email:
- Website: https://www.pvcwaterhose.com
Published date: May 22, 2018
- Business Description: QINGDAO EASTOP PLASTIC PRODUCT CO., LTD is a professional manufacturer and exporter of PVC flexible hoses, with 14 years'experience.
Our product range cover PVC layflat hose, PVC fiber reinforced hose, PVC steel wire reinforced hose, PVC helix suction hose, PVC garden hose, hose couplings, hose clamps, etc.
