Angular Contact Ball Bearings

Structure

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis.

This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases.

The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis .

Features and benefits of Angular Contact Bearing

1 - Accommodates axial loads in both directions

2 - Less axial space: These bearings take up considerably less axial space than double row bearings.

3 - High load carrying capacity: A large number of balls are incorporated, giving the bearing its high load carrying capacity.

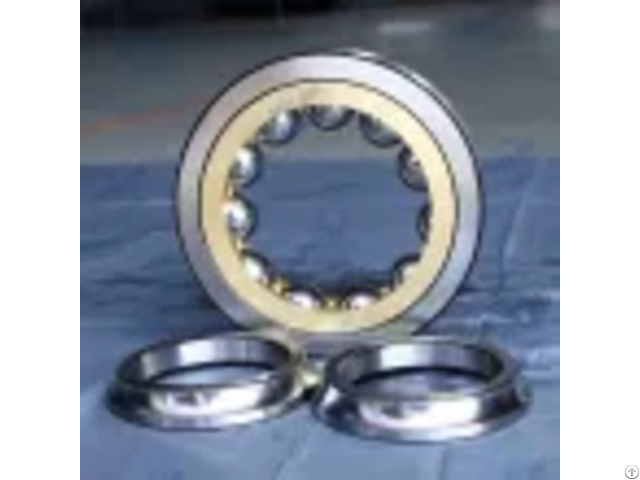

4 - Separable design: The split inner ring leads to easier mounting and dismounting of the bearing.

5 - Improved oil flow

6 - Limited inner ring deformation when subjected to high clamping forces

Contact us now to obtain an angular contact ball bearing price.

Types of Angular Contact Ball Bearings

Bearing Type Contact Angle Load Capacity Speed Capability Radial Clearance Axial Clearance Examples of Applications

Single-Row Angular Contact Ball Bearings 15°, 25°, 40°, 45°, 60° Light to heavy axial loads, moderate radial loads High C2, C3, C4 CN Machine tool spindles, pumps, compressors, centrifuges

Double-Row Angular Contact Ball Bearings 25°, 30°, 40°, 45° Moderate to heavy axial and radial loads Moderate to high C2, C3, C4 CN Pumps, compressors, machine tool spindles, conveyor systems

Four-Point Contact Ball Bearings 35° Light to moderate axial and radial loads Moderate to high C2, C3, C4 CN Robotics, medical equipment, radar systems

Angular Contact Thrust Ball Bearings 60° Heavy axial loads, light to moderate radial loads High C2, C3, C4 CN Machine tool spindles, aircraft landing gear, robotics

This chart can be used to compare and contrast the different types of angular contact ball bearings based on their key characteristics, such as contact angle, load capacity, speed capability, radial and axial clearance, and examples of applications.

By understanding the unique features and benefits of each type of bearing, manufacturers and engineers can select the best option for their specific application requirements.

WBJF Bearings-Angular Contact Ball Bearing Manufacturers

Why WBJF?As an experienced angular contact ball bearing manufacturer, we specialize in producing top-quality bearings that meet the needs of our customers.

Our team of skilled engineers and technicians works tirelessly to ensure that every bearing we produce meets the highest standards of quality and performance.

In addition to our standard product line, we also offer custom angular contact ball bearings for specific applications.

For example, our Angular Contact Ball Bearings for Coal Crushers are specifically designed to handle the harsh conditions found in coal mining operations.

Single-row angular contact ball bearings for steel crane trolleys, etc.

These bearings are engineered to withstand heavy loads, shock loads, and high temperatures, making them the ideal choice for coal crusher applications.

Here is an example chart that can be used for a detailed analysis of custom angular contact ball bearings:

Bearing Specification Custom Requirements

Bearing Type Angular Contact Ball Bearing

Size Custom

Material Custom (e.g. stainless steel, ceramic)

Cage Material Custom (e.g. brass, polyamide)

Number of Rows Custom

Contact Angle Custom

Load Capacity Custom

Lubrication Custom (e.g. oil, grease)

Operating Temperature Range Custom

Vibration Level Custom

Noise Level Custom

Testing Requirements Custom (e.g. fatigue, impact)

Application Custom (e.g. coal crusher, wind turbine)

Estimated Lifetime Custom

Cost Custom

At WBJF, we are committed to providing our customers with the best possible solutions for their bearing needs.

Whether you need standard or custom angular contact ball bearings, you can count on us to deliver high-quality products that meet your exact specifications.
