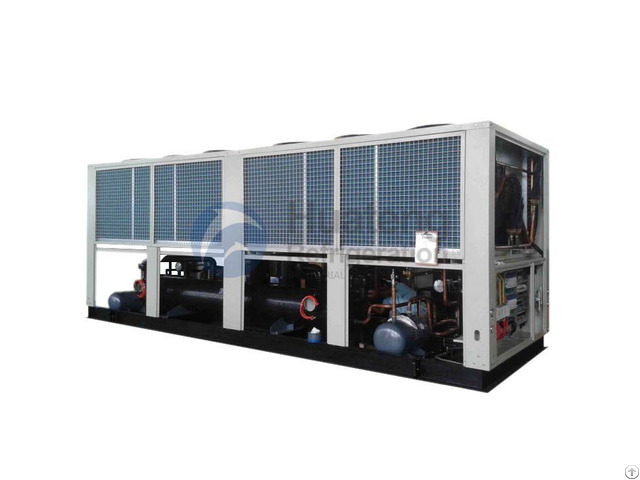

Commercial Air Cooled Screw Chiller - China

Commercial Air Cooled Screw Chiller, Tube type Air Cooled Screw Chiller, Air Cooled Screw Chiller supplier

Description:

The series air cooled screw type chiller cooling capacity from 85KW to 1550KW.

This series units integrates the characteristics of many other products, using imported semi-closed screw compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain.

The user just need simply connect the pipeline of the water system and the required power supply, then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum.

The manufacturing technology of this product is mature and stable and reliable.

Features of chiller:

1 - Employing original double/single SCREW compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

2 - Employing all-new imported high class component

3 - Employing two sets of compressor which can be used jointly or independent

4 - Switch control, easy operation and maintenance

5 - The weld of brass pipe is non-oxidization

6 - Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003, operation safe Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective Air cooled screw chiller(Environmental Protection)

Model HTK-M120F HTK-M140F HTK-M160F HTK-M180F HTK-M200F HTK-M260F HTK-M300F HTK-M350F

Cooling KW 117 143 162 181 195 260 299 349

Capacity Kcal/Hr 10620 122980 139320 155631 167700 223600 257140 300140 RT 33.27 40.66 46.06 51.46 55.44 73.93 85.02 99.23

Power 50HZ 3P-380V-50HZ

Input power(KW) 37.2 51.5 57.3 64.1 68.8 86.2 99.6 115.7

EER COP 3.15 2.78 2.83 2.82 2.83 3.02 3 3.02

Freezing medium R134a

control mode Thermal expansion valve

Comprosser Mode Semi-closed double screw Working style Y-Δ/Δ-Δ Capacity 0-25%-50%-75%-100%

Condensor Mode Finned type Cooling air tempreture In 35℃/Out 45℃ Wind flow (m³/h) 60000 60000 90000 90000 120000 120000 180000 180000 Fan quantity 4 4 6 6 6 8 12 12 Motor power(KW) 0.85*4 0.85*4 0.85*6 0.85*6 0.85*6 0.85*8 0.85*12 0.85*12

Evaporater mode Efficient finned tube filled with liquid Freeze water tempreture In 12℃/Out 7℃ Freeze water flow (m³/h) 20.1 24.6 27.9 31.1 33.5 44.7 51.4 60 Pressure loss (Kpa) 52 52 55 58 58 58 58 61 waterpipe DN80 DN80 DN80 DN80 DN80 DN80 DN100 DN100

Safeguard High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Units Weight Kg 2000 2500 2600 2700 3500 3600 4400 4600

Size L(mm) 2080 2080 3060 3060 4040 4040 6000 6000 W(mm) 2200 2200 2200 2200 2200 2200 2200 2200 H(mm) 2220 2220 2220 2220 2260 2260 2260 2260

Noise(dB) 72 72 72 73 74 74 75 75 Note:

1 - Above cooling capacity parameters are all based on the conditions of dry bulb temperature 35℃, water temperature (in) 12℃, water temperature(out)7℃

2 - We can make order according to your requirement.

3 - Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
