Digital Printing Aluminum Composite Panel - China

The product comes with an optimized lacquer system for direct-to-substrate digital printing showing excellent ink adhesion which allows advanced printing speed.

The higher performance means higher output and lower costs.

I.

Introduction to Digital Printing on ACP

1 - Choose of ACP Substrate.

A: ACP for digital print should be flat enough, the bow should be controlled above 5mm (inch).

B: Good surface conditions also needed, there should be less than 20 flaws in one square meter on the surface of finished paint.

C: Chemical element of paint for the printing side should not container Lead (Pb), and should be absorbable enough.

The surface tension should be controlled above 38 dyne.

D: Gloss of the finished paint surface should be between 30 and 40degree.

2 - Choose of printer

The final print performance may effected by different print precision of different printers.

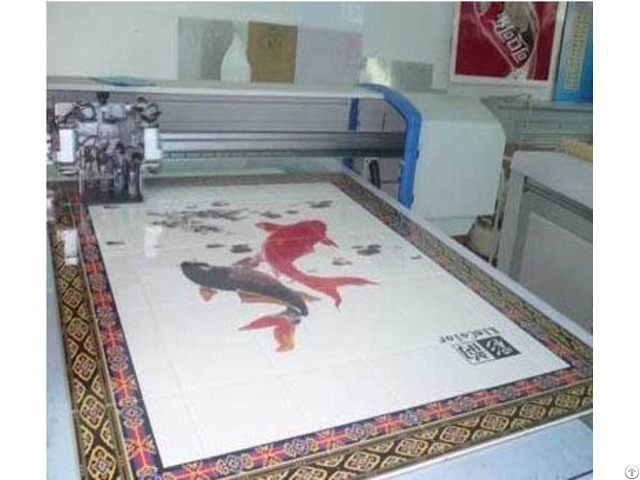

For digital printing on ACP, the best choice of Printer is UV curing flatbed printer, recommended like AGFA, OCE, which is the leading brand of the industry.

3 - Choose of Digital Ink

There’re usually 3 kinds of inks for flatbed printing, aqueous ink, oily ink and UV ink.

Judge from the final performance, the UV ink is the most suitable for digital flatbed printing, this kind of ink has the feature of fast curing, water proof, moisture proof, also if use this ink, the printed graphics will be stable and reliable on the substrate.

II.

Specification Data

1)Surface Conditions: Smooth and clean, less than 20 flaws in 1 square meter

2)Panel Flatness: Maximum 5mm's bow

3)Surface Tension: 38 dyne and above

4)Paint Gloss: 30-40degree

5)Aluminum alloy: AA1100 series, AA3003 series

6)Aluminum skin: 0.1-0.5mm

7)Panel thickness: 2mm 3mm 4mm

8)Panel width: 1000mm 1220mm 1250mm 1500mm

9)Panel length: 2440mm 3050mm 4050mm 5000mm

Customized size accepted.
