Dongfeng Truck Mounted Aerial Platform - China

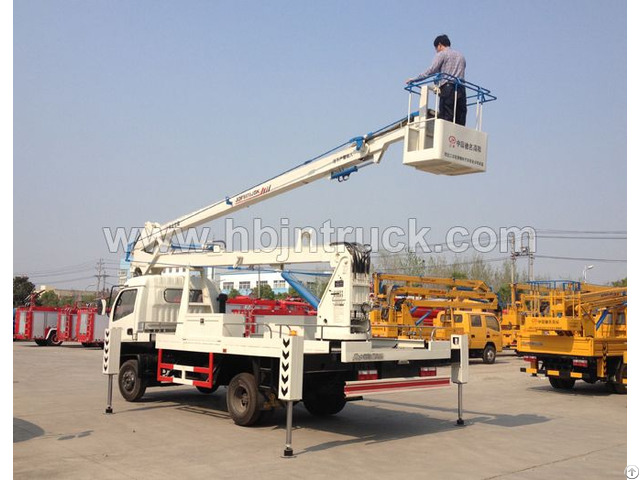

Dongfeng Truck Mounted Aerial Platform

We are China truck mounted aerial platform manufacturers, we manufacture truck mounted aerial platform, truck mounted scissor lift, our truck mounted aerial platform has two types: telescopic boom lift and articulated boom lift.

Truck mounted aerial platform could be used for painting, industry, factories, for working on electric poles, cables or window, statue and wall cleaning.

Features:

---Our truck mounted aerial platform meet ISO9001: 2008 and China CCC standard.

---Articulated boom, max working height 18 meter.

---4 outriggers could be extended seperately or together.

---Bucket rated loaded capacity 200kg

---The crane mounted at the end of boom, max lifting capacity 1000kg.

---Emergency pump assure the security.

More information:

Vehicle Model JDF5070JGK

Chassis Brand Dongfeng

Drive Type 4 x 2, LHD / RHD

Wheelbase 3800 mm

Cabin Single row, 2 persons allowed

Overall Dimension (L x W x H) 8250 x 2320 x 3500 mm

GVW 7490 kg

Kerb Weight 7295 kg

Engine Engine Model CY4102-C3C Engine Make Chaochai Rated Power 88 kw / 120ps Displacement 3856 ml Type Diesel engine, Euro 3

Brake Air brake

Transmission 5 speed forward, 1 reverse

Tire Size 7.50-16

Max Speed 95 km/h

Superstructure Max Working Height 18 m Boom Type Knuckle boom, 3 sections Max Working Radius 7.5 m Hydraulic System Working Pressure 16 MPa Bucket Load 200 kg

Company Contact:

• Posted By: Hubei Jiangnan Special Automobile Co., Ltd

• Phone: 18771385883

• Address: No.1 , Xingguang Industrial Park, Beijiao, Suizhou City, Hubei Province, China

• Email:

• Business Description: Hubei Jiangnan Special Automobile Co., Ltd is a leading manufacturer of special purpose truck in China.

  We have a very good cooperation with China famous chassis manufacturers, such as DONGFENG, SINOTRUCK HOWO, JMC, JAC, FOTON, SHACMAN, FAW, BEIBEN.

  We mainly engages in the manufacturing of fire trucks, aerial platform trucks, garbage trucks, water trucks, truck with crane, sewage suction trucks the quality meet China CCC and ISO9001: 2008 standard.

  Especially of fire fighting truck, we are the approval fire fighting truck manufacturer, fire fighting truck manufacturing qualification must special approved by Chinese government in China.

  Since founded in 1997 we have delivered more than 2,000 trucks to many country and region, our goal is bringing you the best of special purpose trucks with the most competitive price, we assure you of immaculate quality and excellence.
