Double Rcd Unswitched Socket 30ma And 10ma - China

price: 1.00 Dollar US$

Double Rcd Unswitched Socket 30ma And 10ma

Products Photos Catalog Double Rcd Unswitched Photos Catalog

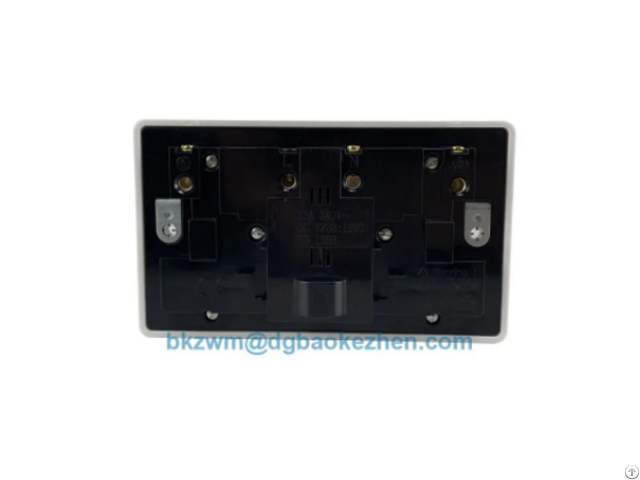

13A Double RCD unswitched socket 30mA &10mA

PRODUCT DESCRIPTION

Electrical Equipment & Supplies>> Electrical Plugs & Sockets

Place of Origin: Guangdong, China (Mainland)

Brand Name: BAOKEZHEN

Model Number: BKZ0230PW wall socket

Type: Wall Socket

Grounding: Standard Grounding

Rated Voltage: 230V

Rated Current: 13A

Application: Residential / General-Purpose

Color: white

Clad: PC

type: double pole

Characteristics: RCD safety socket, no switch

Advantage

1 - double RCD plastic socket, unswitched

2 - PC material, Passive RCD

3 - Dimension: 146*86mm

4 - ROHS, CE, BS, EMC, UKCA

Specification

Serial No.

Parameter Description

1 Rated Voltage 240V

2 Rated Current 13Amax

3 Tripping current 10mA & 30mA

4 Rated trip current 30mA

5 Trip speed less than 40ms

6 Cable capacity 3*2.5mm2

7 Standard CE BS7288 BS1363

8 Remarks Fuse inside

9 Application Residential / General-Purpose

10 color white

11 material PC

12 Size 146*86mm

13 Endurance 3000 Cycles min

14 Hit-Pot Test 2000V/1 Minute

15 Application Equipment, Household appliances, workshop and outdoors, etc.


Company Contact:


  • Phone: 13652699197

  • Address: #22 Jiaoping Rd Tangxia Town, Dongguan , Guangdong Sheng, China

  • Email: Email


Published date: August 23, 2021

  • Business Description: Dongguan BAOKEZHEN Electric Technology CO., Ltd. Was established in January 2008 - Our factory locates at #22 Jiaoping Rd Tangxia Town Dongguan Guangdong 523710, China.

    Dongguan Baokezhen is an independent enterprise who fully operate Research and Development, manufacture, export, pack and transportation, and after-sales service as one-stop solution.

    We have obtained UL / CUL / ETL / CETL / CE / UKCA / BS / SAA and other international safety certifications.

    Many series of RCD sockets and plugs that were developed with our own R&D team have been respectively granted patent certificates authorized by State Intellectual Property Offices in the United States, the European Union and China.
