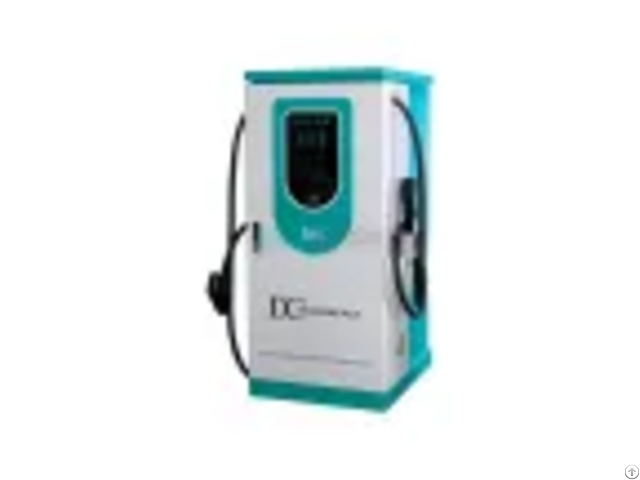

EV Charging Pile

Product Description

With the developing of technology, the pollution and consumption of electric vehicles is much lower than gasoline vehicles, makes it widely welcomed by the government and individuals.

Electric cars are the key point when moving towards a sustainable transport future.

However, it’s not simple to reach this future as electric cars must become as convenient as the regular ones.

It needs more convenient charging processes, more convenient operation processes, and easier way to find the charging stations, etc.

With rich experience in the electric vehicle industry.

Ruihua has made an in-depth market investigation, and provide solutions with function such as 4G/WLAN networking, remote control, VPN data encryption.

Ruihua contributes to the promotion of a Green Earth.

Unlock the future of transportation with Ruihua state-of-the-art EV Charging Pile.

Designed to meet the growing demands of electric vehicle owners, our charging pile combines cutting-edge technology with user-friendly features to make EV charging accessible, efficient, and sustainable.

Ruihua High Power DC Fast Charger with CE certificate.

Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers.

EV Charging Pile Details:

Multi-standard: CCS1, CCS2

Network or standalone operation

Support smart charging and load balancing

Multiple protection to ensure users’ safety

OCPP 1.6 JSON/ OCPP 2.0.1

( Comply with latest OCPP protocol as Ruihua is the member of OCA )

Power Specification

Input Connection 3-Phase : 3P+N+PE

Input Voltage 400V/AC ±15%

Frequency 50Hz or 60Hz

THDi ≤5%

Power Factor ≥0.98

Output Voltage 150Vdc - 1000Vdc

Max.

Output Current 200A( 250A optional)

Rated Power 120kW - 240kW

User Interface & Control

LCD Display 7" Color Touch Screen

LED Indicator Green/Yellow/Red

Charging Interface CCS2 Plug( CCS1 Plug / CHAdeMO optional )

Number of Charging Interface 2

Energy Measuring Embedded meter, with 1% accuracy

Communication

Backend Ethernet( Bluetooth / Wi-Fi/ 4G Optional )

Charging Protocol ISO 15118, DIN 70121

Backend Protocol OCPP 1.6 JSON ( OCPP2.0.1 )

Protection

Residual Current Device Yes

Internal Fuse Yes

Electrical Protection Over/Under Voltage Protection, Over Current Protection, Short Circuit Protec-

tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection

Environmental

Operating Temperature -30℃—+55℃

Storage Temperature -40℃—+75℃

Operating Humidity Max.

90% RH, Non-Condensing

Operating Altitude ≤ 2000m

IP, IK Level IP65, IK10

Cooling Method Independent air duct

Mechanical

Product Dimension 1780*800*950 mm (H*W*D)

Charging Cable Length 5m

Weight 60kw: 390kg; 120kw: 420kg;

Mounting Free Standing

Certifications

Certifificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24

Safety CE

EMC Class B

Request a free quote today!

Key Features of EV Charging Pile:

♦ Our EV Charging Pile supports both Level 2 (AC) and Level 3 (DC) charging, delivering rapid charging speeds to get you back on the road quickly.

Say goodbye to long waiting times.

♦ Whether you drive a Tesla, Nissan Leaf, Chevrolet Bolt, or any other electric vehicle, our charging pile is compatible with a wide range of EV models, ensuring you can charge your vehicle hassle-free.

♦ Charging your EV has never been easier.

Our intuitive touchscreen interface guides you through the charging process effortlessly.

It even displays real-time charging data, so you can track your progress.

♦ Safety is our priority.

Our charging pile features secure access controls, including RFID card compatibility and mobile app integration.

You'll have peace of mind knowing your vehicle is protected during charging.

♦ Built to withstand the elements, our charging pile is robust and weatherproof.

Rain or shine, you can count on it to perform reliably.

♦ We believe in sustainable charging.

Our charging pile includes advanced energy management features such as load balancing and peak demand management, helping you optimize your energy usage and reduce costs.

♦ Stay in control from anywhere.

Our charging pile offers remote monitoring and diagnostics, allowing you to check the status of your charging session and receive alerts if any issues arise.

♦ Whether it's for your business, public charging station, or home, our charging pile can be customized with your branding, creating a unique and memorable impression.
