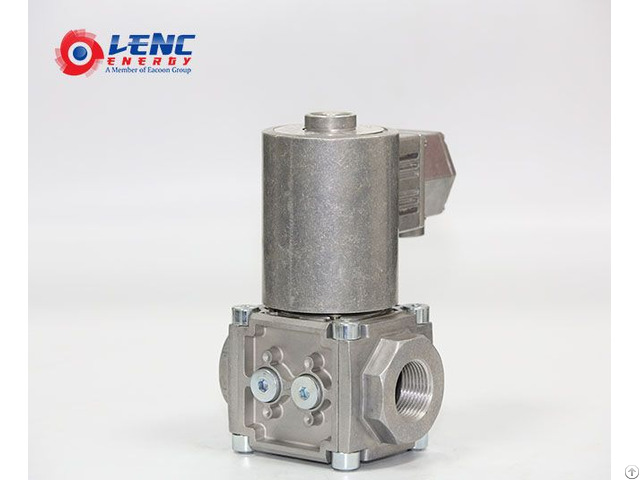

Explosion proof Solenoid Valve

Description and Application

Product details

1 - DEVEC/DEVECH Isolating explosion type solenoid valves (short as explosion proof valves) are widely used at gas transmission and control to provide opens and shuts or emergency shut-off for pipe line.

2 - Its explosion proof performance meets the regulations of GB35.3.1-2010 and GB3836.2-2010, granting the sign ExdⅡB T4 Gb.

It can be used at danger zone 1 and 2 of a working area with ⅡB sign, using explosive gas within the range of T1 to T4 (230VAC 50Hz).

3 - It adopted a modular design allowing it to save installation space, easier to be maintained (no need to disassemble the pipe line) comparing to common valves.

4 - It can be applied to gas medium, such as natural gas, methane, LPG and so on.

Operation and installation: Normally closed type, after the power is energized, it will open quickly, and when the power is off, it will be shut down immediately.

There are bypass holes on both sides of the valve body, and the hole diameter is G1/4"

Gas Solenoid Valve Factory: Guangzhou Liancheng Energy Technology Development Co.

Ltd.

Technical Specification:

Technical parameter

Opening Time: less than 1 second

Closing Time: less than 1 second

Maximum operating frequency: 20 times per minute

Maximum working pressure: atmospheric pressure 20-25 360 mbar; high pressure

By-pass ports are set on both sides of the valves, with diameter of G1/4”

Inside filter net

Protection: IP54

Sealing material: nitrile rubber

Body material: aluminum alloy

Pressure steel spring AISI 302.

The ambient temperature: -15℃- 60℃

Coil temperature: 65℃

Standard and certification:

Meet the requirements of GB3836.1-2010, GB3836.2-2010

Explosion-proof certificate number: GYB17.1276X

The explosion-proof mark is ExdIIBT4 Gb

Electrical specification:

Voltage : 50-60Hz, 230Vac.

(other voltage can be customized).

Coils to Class F, 360 ° rotation, suitable for permanent excitation.

Solenoid Valves Manufacturers In China: Located in GZ city, Guangzhou Liancheng Energy Technology Development Co.

Ltd., a subsidiary of Eacoon Group, Combining the techniques and values from around the globe and integrating them with the excellent production capabilities of domestic companies, we have launched our own brand “LENC”, which specializes in exporting burner accessories, such as, burner ignition transformer, solenoid valves, actuators, etc.
