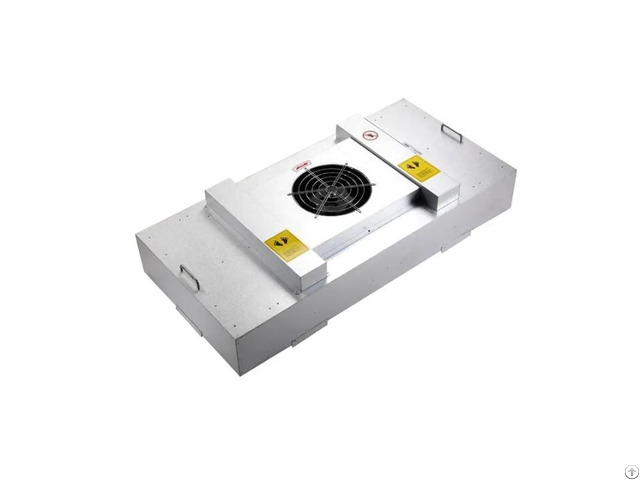

Ffu Fan Filter Units - China

Fan filter units is a high-efficiency filtration device with its own fan, abbreviated as FFU.

China Construction South FFU adopts environmental-friendly material and is corrosion-resistant.

The filtration efficiency for ≥0.3 micron particles is above 99.99 - Scope of Application

It is mainly used in large area laminar flow clean room roof air supply, such as food, chemical industry, textile, light industry, pharmaceutical and other fields.

Product Parameter

Model ZN-FFU-1 ZN-FFU-2 ZN-FFU-3

FFU dimensions (mm) 610×1220×350 610×610×350 1174×574×350

Screen dimensions (mm) 600×1210×69 610×610×69 1170×570×69

Air volume (m3/h) 2000 1000 1300

Speed control Stepless type air volume regulator can adjust air volume arbitrarily

Voltage/current Single phase 220V/50Hz

output rating 140W-240W

Screen efficiency HEPA @0.3μm99.99% above

Ontology material SUS304/430 mirror stainless steel plate 1.0t/pp/powder painted steel plate

Weight (kg) 25 16 25 Fan Filter Unit For Clean Room

A fan filtration unit (FFU) is a type of air filtration equipment.

It is used to provide clean air to a clean room or microenvironment by filtering out harmful airborne particles from recirculated air.

These units are installed in the ceiling or floor grid of the system.

Large cleanrooms require a large number of FFUs, which in some cases may range from a few hundred to several thousand.

Units typically contain their own pre-filters, HEPA filters and internal controlled fan air distribution.

FFUs can be used in place of more traditional recirculating air units, such as ducted or pressurized designs.

FFUs are often used due to the height limitations of the space; they are the only system suitable for settings with small internal floor dimensions.

Fan-driven HEPA, FFU designs are often considered less expensive than more traditional ducted supply systems.

If you are interested in our Air Filter products, please contact us and we will provide you with the best quality products and the best service!
